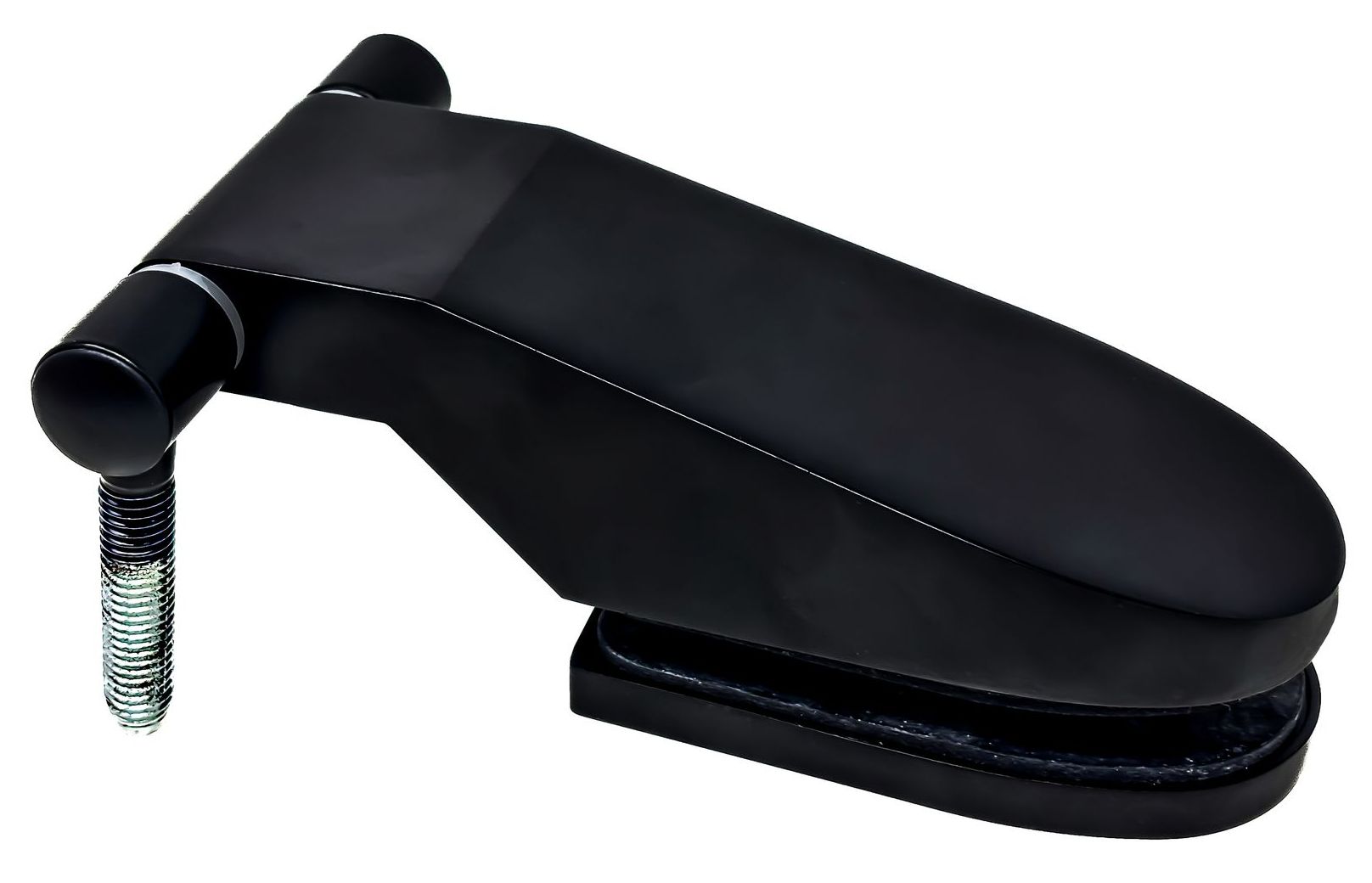

Door hinge „Tongue form“ with 2 drill-in threaded pins M8x40 mm, matt-black

art. no. 851465

suitable for private and commercial facilities, for glass pane inside in door frame. Height and side adjustment of the glass door up to 4.5 mm depending on the fitting position of the adjustable eccentric is possible, 2 glass bore holes (dimension sheet on request), silent, maintenance-free plastic slide bearing, aperture angle 180°, door hinge made of corrosion-free zinc die-casting, turning pin and screws made of stainless steel, DIN left or right usable. Load-bearing capacity 25 kg/piece.

Dim. WxH: approx. 130x79 mm

weight approx. 530 g

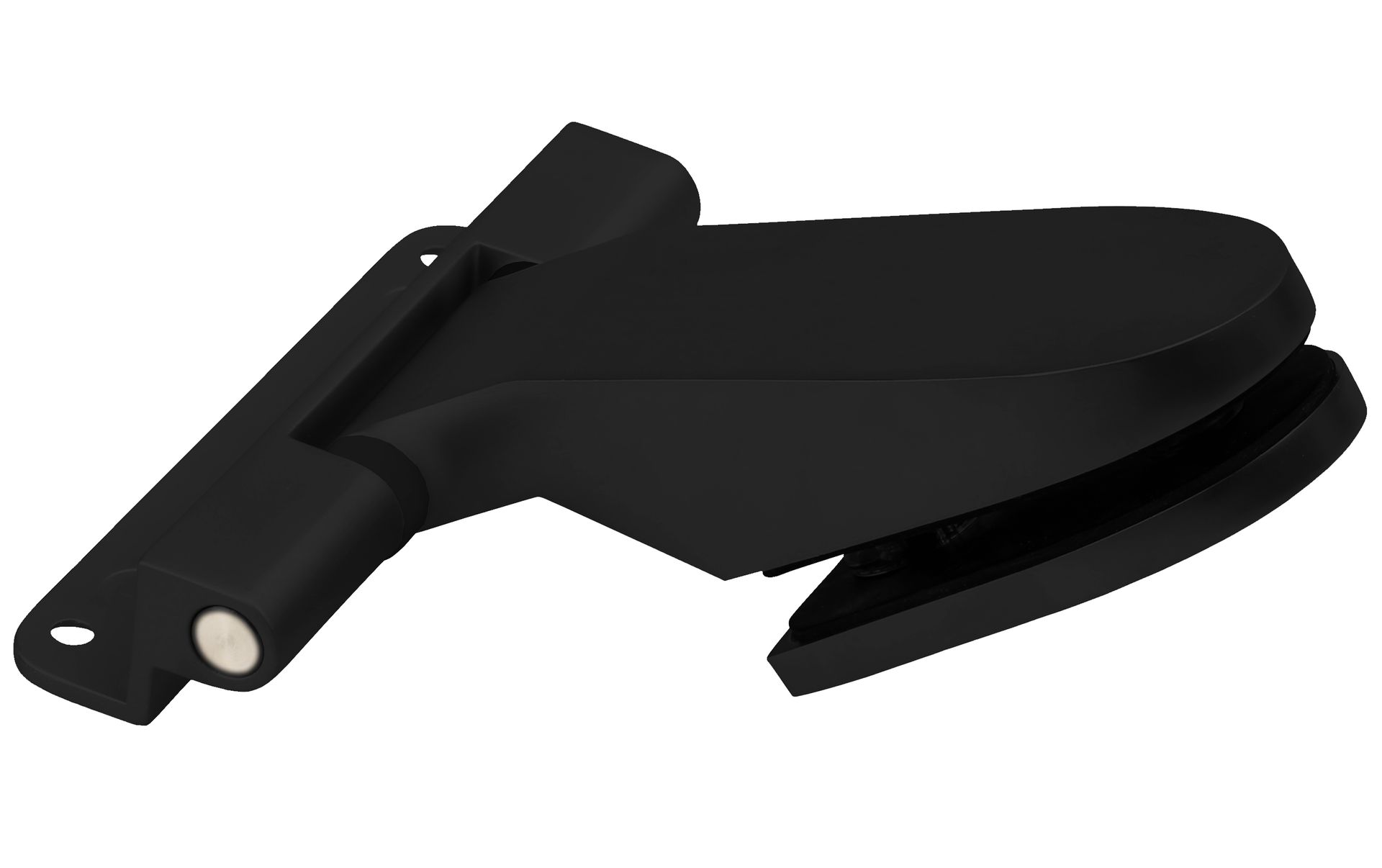

Door hinge „Tongue form“ with screw-on band matt-black

art. no. 851505

suitable for private and commercial facilities, with screw-on band in the door rabbet. Height and side adjustment of the glass door up to 4.5 mm depending on the fitting position of the ajustable eccentric is possible, 2 glass bore holes (dimension sheet on request), silent, maintenance-free plastic slide bearing, aperture angle 180°, door hinge made of corrosion-free zinc die-casting, turning pin and screws made of stainless steel, DIN left or right usable. Load-bearing capacity 25 kg/piece, dim. WxH approx. 130x124 mm

weight approx. 710 g

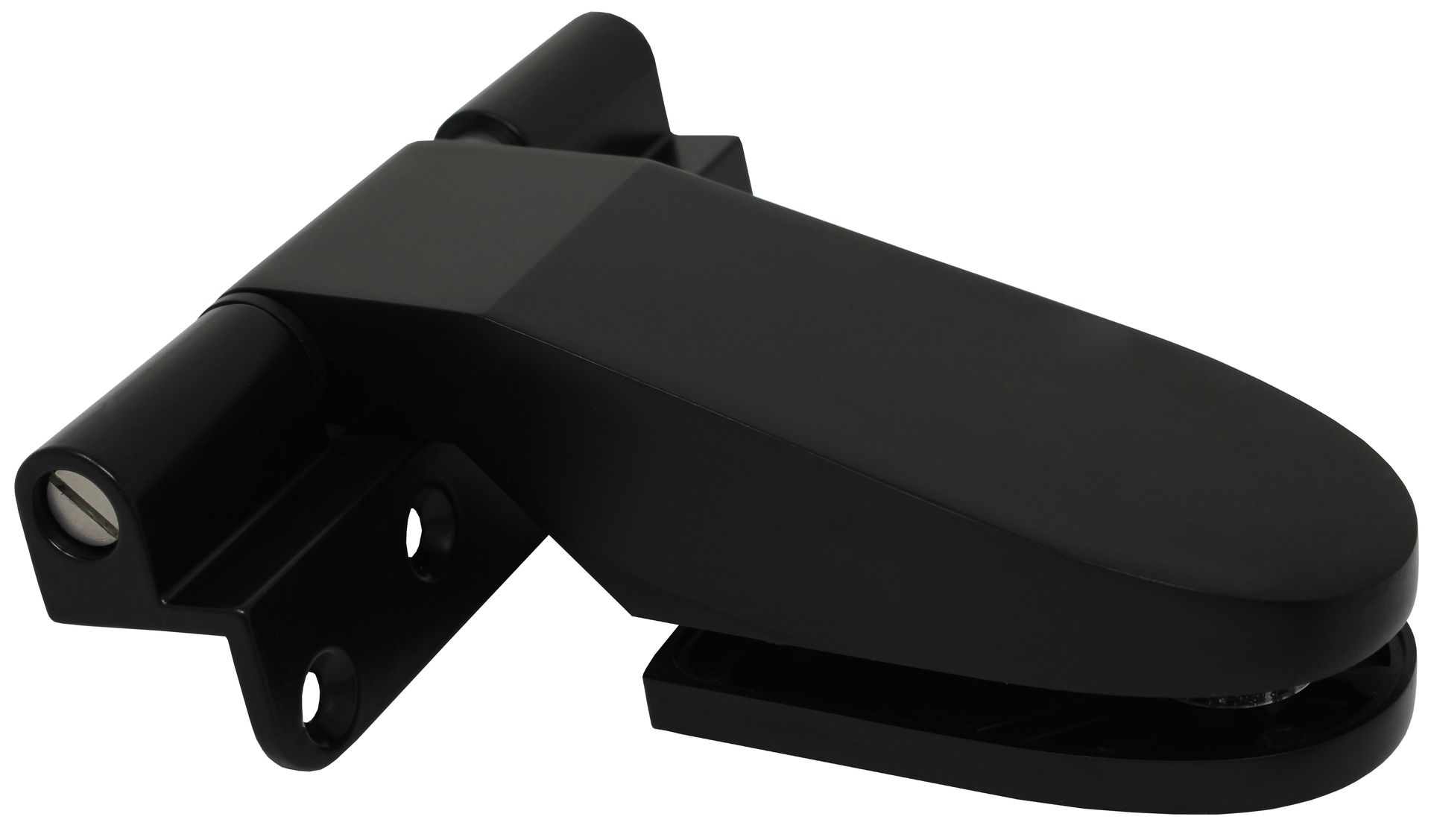

Door hinge self closing „Tongue form“ matt-black

art. no. 852036 DIN left

art. no. 852037 DIN right

fastening in rabbet with screw-on band, for glass pane inside in door frame, suitable for private and commercial facilities with max. dim. glass door HxW 2000x900 mm, self-closing within an opening range of 0° - approx. 140° (0° - approx. 85° is available on request) and static within a range of approx. 140° - 180° (approx. 85° - 180° is available on request). Warmth- and ener-gy-saving, avoids open doors because of careless users! Glass pane can be fitted floor-flushed as it will be slightly lifted by the opening movement. Height- and side adjustment of the glass door up to 4.5 mm depending on the fitting position of the ad-justable eccentric is possible, 2 glass bore holes (dimension sheet on request). The complete pre-assembled door hinge is made of corrosion-free zinc die-casting, with turning pin and screws made of stainless steel. For usage in saline environment air you need special door hinges - please contact us in advance for this! All our door hinges are delivered for glass doors 8 mm thick, please inform us in advance if you need it for other glass door thicknesses (6 or 10 mm) than we will deliver you with different parts. Dim: WxH approx. 130x124 mm

weight approx. 720 g

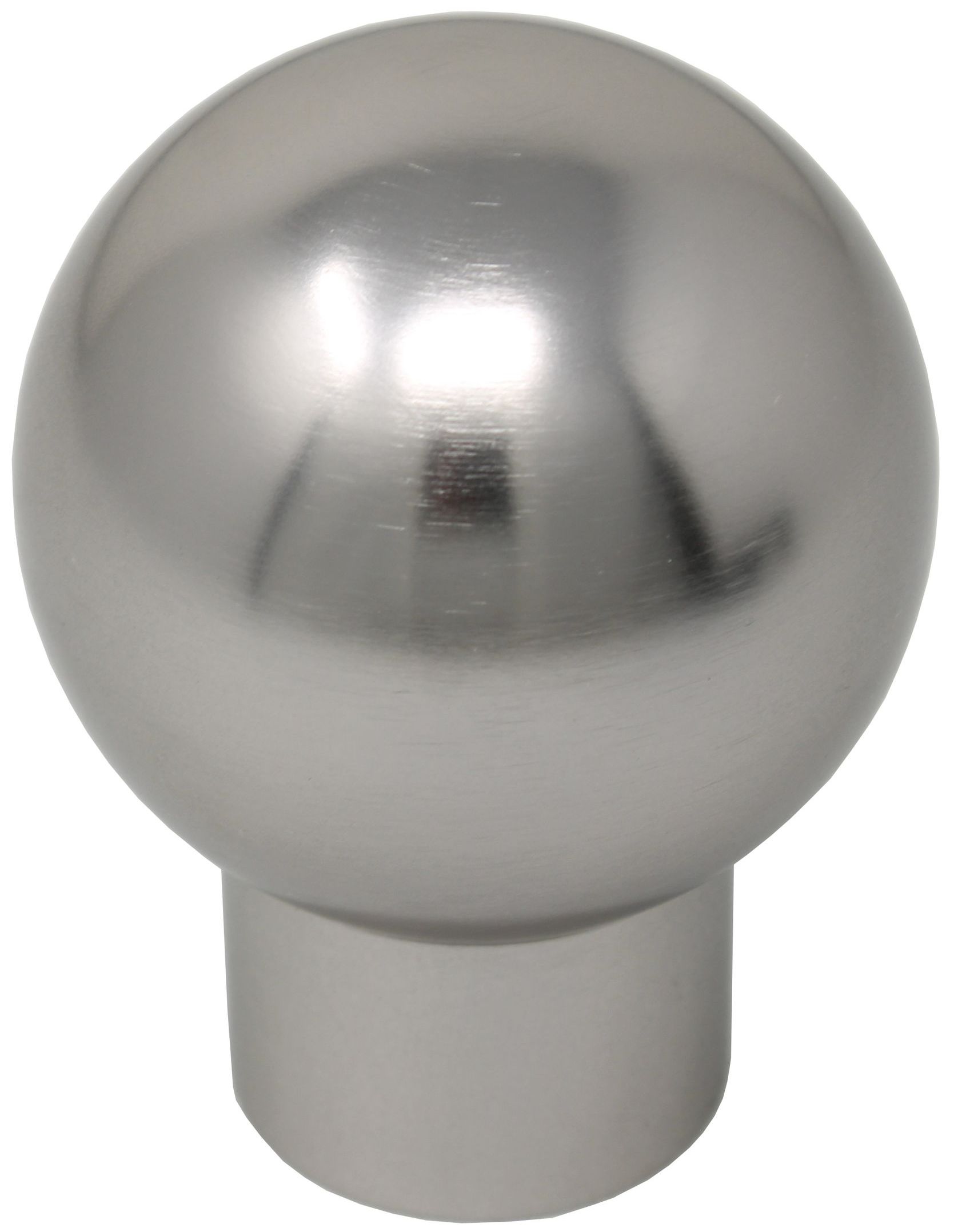

Door knob made of brushed aluminium

art. no. 851092

for steam bath rooms or for the exterior side of sauna doors, suitable for door knob made of wood art. no. 85106

dim.: WxH approx. 50x65 mm

weight approx. 225 g

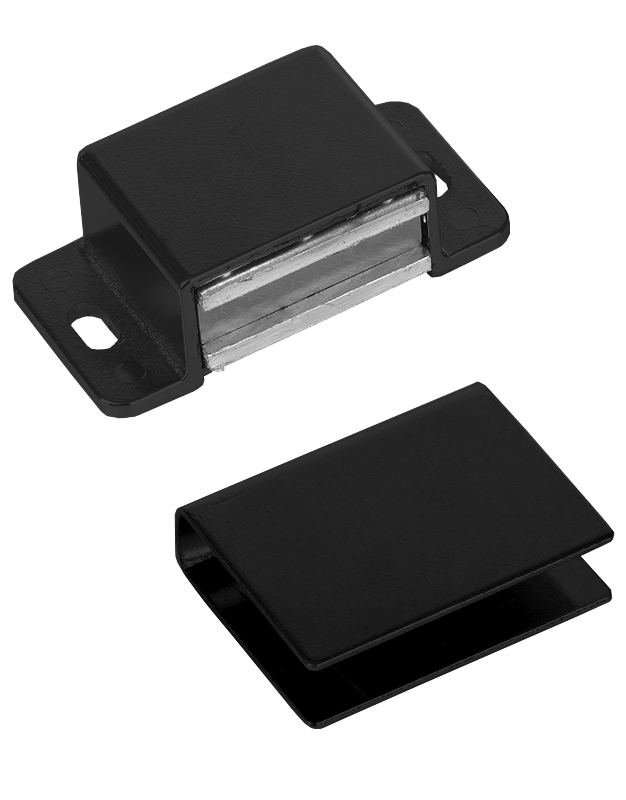

Magnet for screw on incl. U-adhesion sheet black for glass door thickness 8 mm

art. no. 850875

magnet with magnetic force approx. 80 N (approx. 8 kg) in a black metal casing for screw on with slotfastening for a simple adjustment of the magnetic force.

Dim. magnet: WxHxD approx. 46x24x15 mm,

incl. black U-adhesion sheet (easy installation - only clip U-adhesion sheet at the glass door).

Dim. U-adhesion sheet: HxW approx. 35x27 mm

total weight approx. 75 g

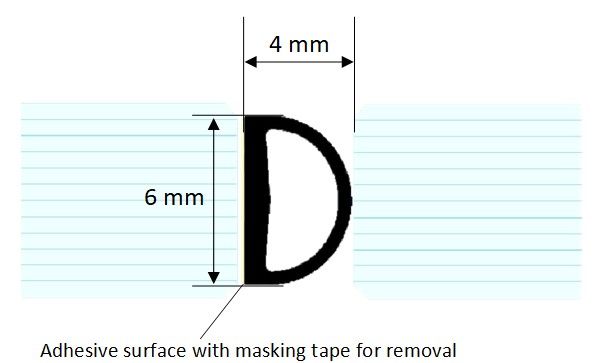

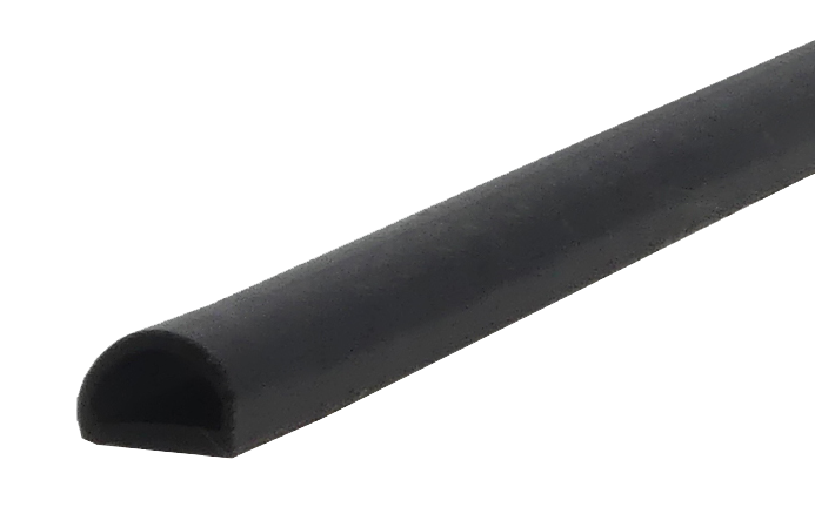

Glass-to-glass edge sealing black for sauna

art. no. 850565

suitable for glass doors 8-10 mm, made of up to 180 °C heat resistant self-adhesive silicone with removable masking tape, UV-, aging-, weather- and ozone-resistant. For larger order quantities we deliver each roll max. 100 m.

Width approx. 6 mm, height approx. 4 mm

weight approx. 15 g/m

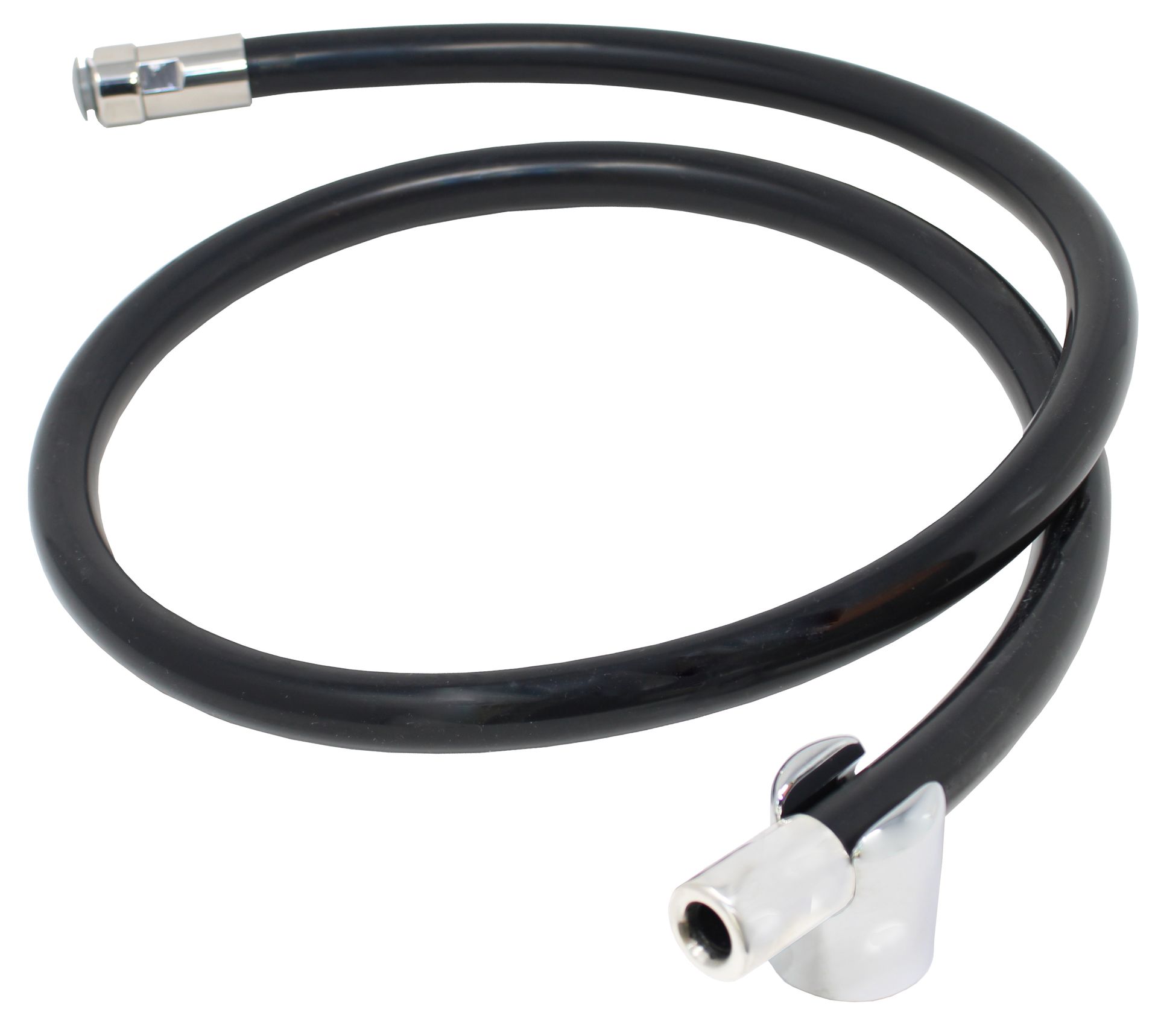

Kneipp-hoses black length approx. 1,5 m screw cap 3/4"

art. no. 870833

food-safe, double-walled hose for a soft and full water jet, with screw cap and flow out made of metal for hang up in the in-cluded wall bracket.

weight approx. 1.2 kg

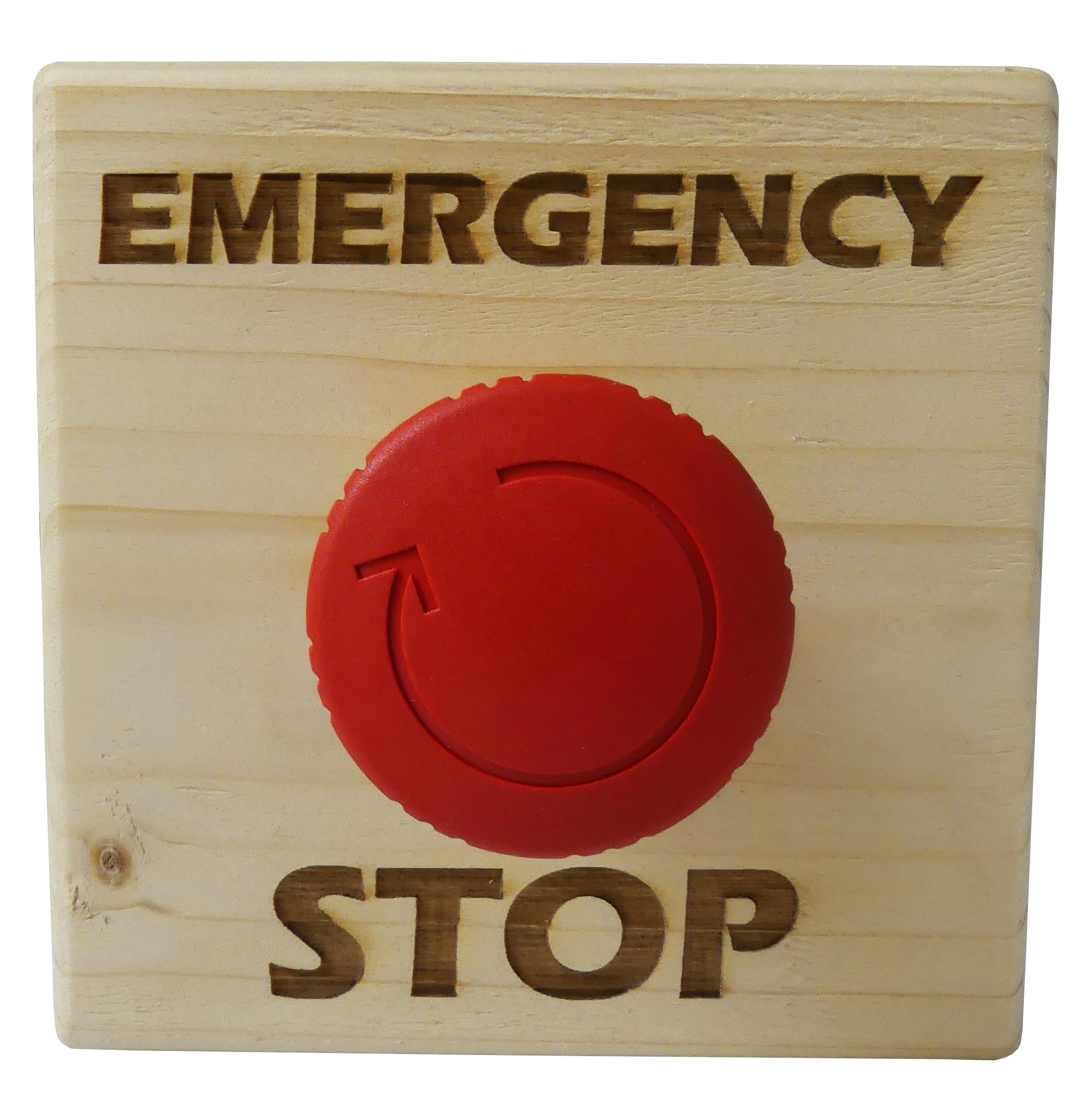

Emergency push button

art. no. 8180

wooden base plate with laser-engraved „EMERGENCY STOP“ and with plastic push button, the wooden plate is attached to the base plate without visible screws. By pressing the emergency push button the sauna heater can be switched off via the safety circuit of the sauna control unit.

Max. operating temperature 70 °C.

Dim. WxHxD approx. 160x100x78 mm

weight approx. 110 g
