White- and colour-lights, light shades

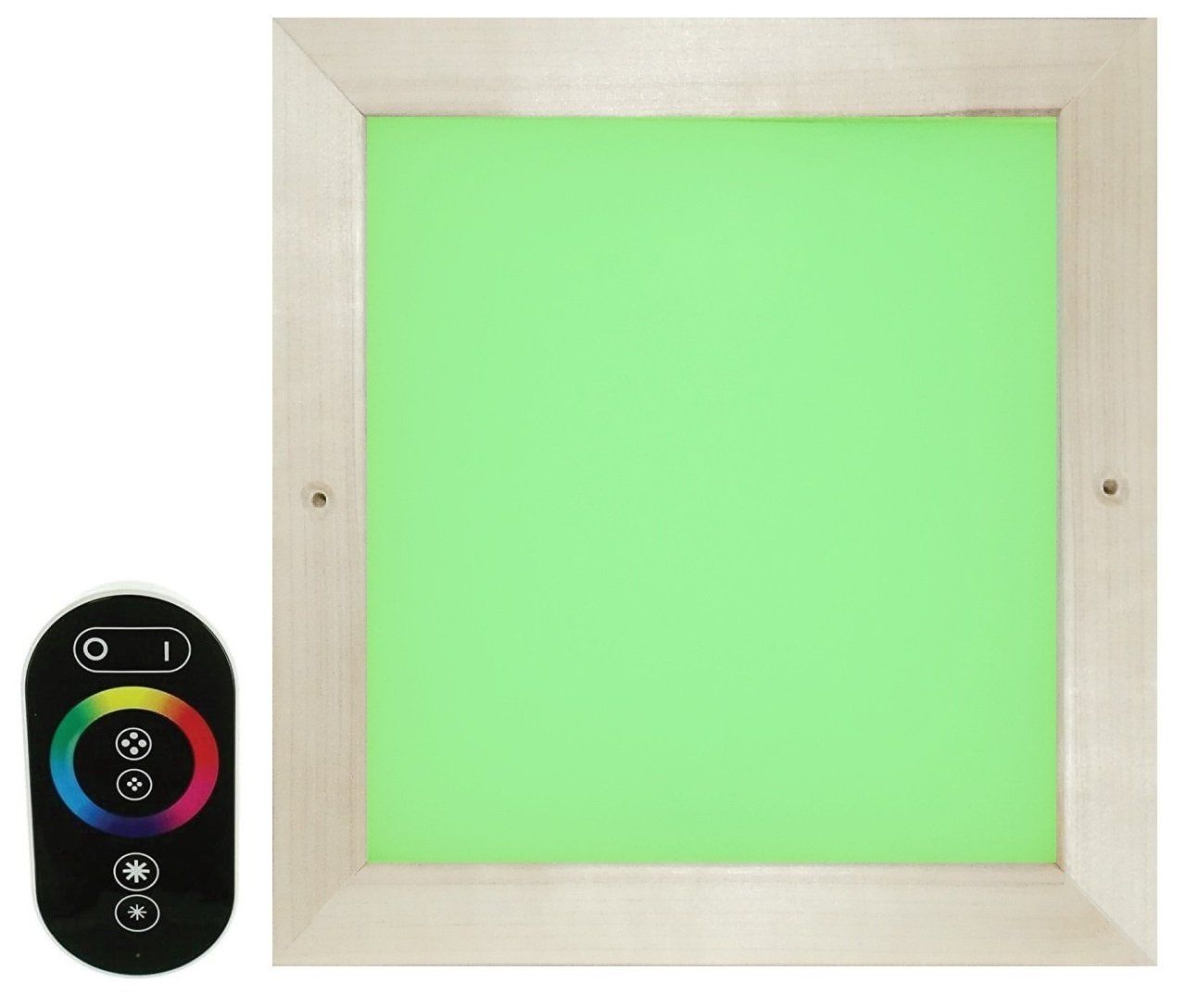

LED-coloured-light for sauna
art. no. 71004
incl. touch-sensor radio-remote control, control module and power supply 100-240 V~50-60 Hz, illumination approx. 4 m²/ light, power input max. 12 W. Light is suitable for ceiling or wall installation up to 110 °C, frame made of aspen wood (other types of wood: alder, hemlock or thermo-ash are available on request) with light surface made of heat resistant plastic - the single LEDs are not visible. The dimmable single colours red, green, blue, violet, turquoise, yellow and white or a fluent colour run with smooth colour transitions with adjustable speed are adjustable with the up to max. 60 °C usable remote control
outer light dim.: WxHxD approx. 240x240x40 mm,
light area dim.: WxH approx. 180x180 mm,
remote control dim.: WxHxD approx. 115x55x23 mm
total weight approx. 2 kg

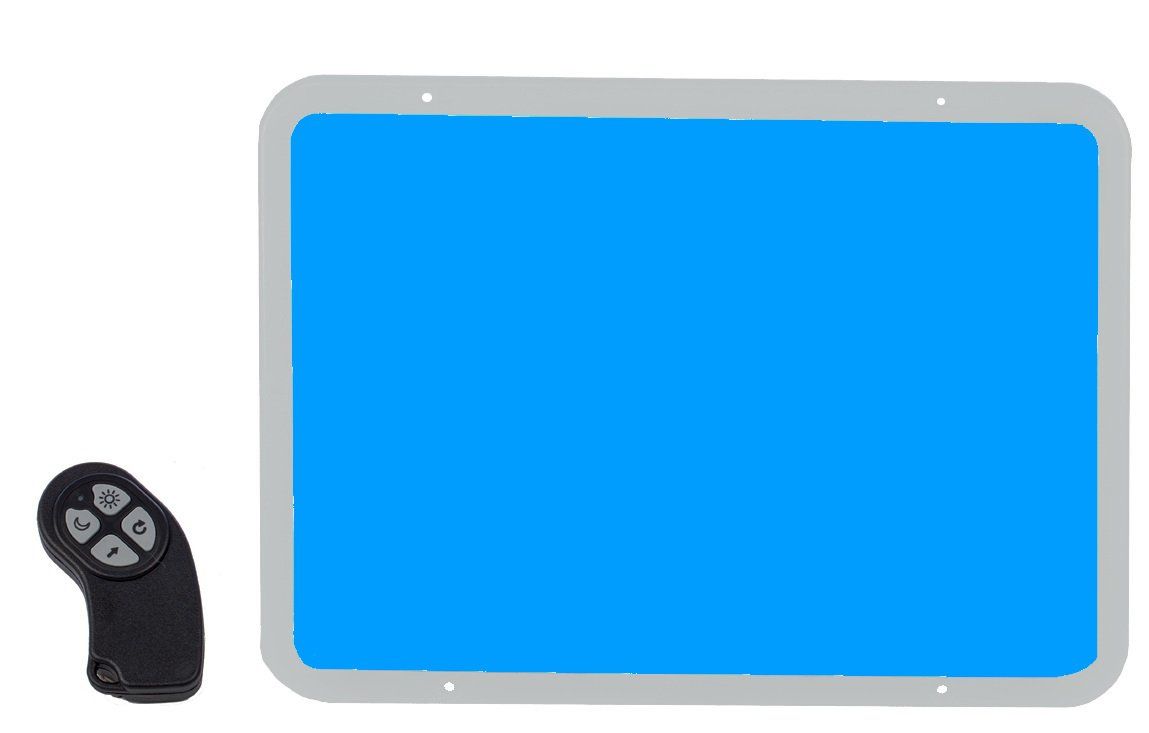

LED-coloured-light for steam bath and sauna
art. no. 71006
incl. radio-remote control and power supply 100-240 V~50-60 Hz, for cabins up to max. 3.5x3x5 m, power input max. 34 W. The waterproof light is suitable for ceiling or wall installation up to max. 125 °C. Light is made of heat resistant plastic – single LEDs are not visible. The dimmable single colours red, orange, yellow, green, turquoise, blue, violet and white or a fluent colour run with smooth colour transitions with adjusta-ble speed are adjustable with the up to max. 125 °C usable remote control, the remote control is not waterproof and must not be used in the steam bath room! Quality product Made in Europe. For sauna use various wooden covers are available on request
outer light dim.: WxHxD approx. 335x240x35 mm,
remote control dim.: WxHxD approx. 30x70x15 mm
total weight approx. 1.5 kg

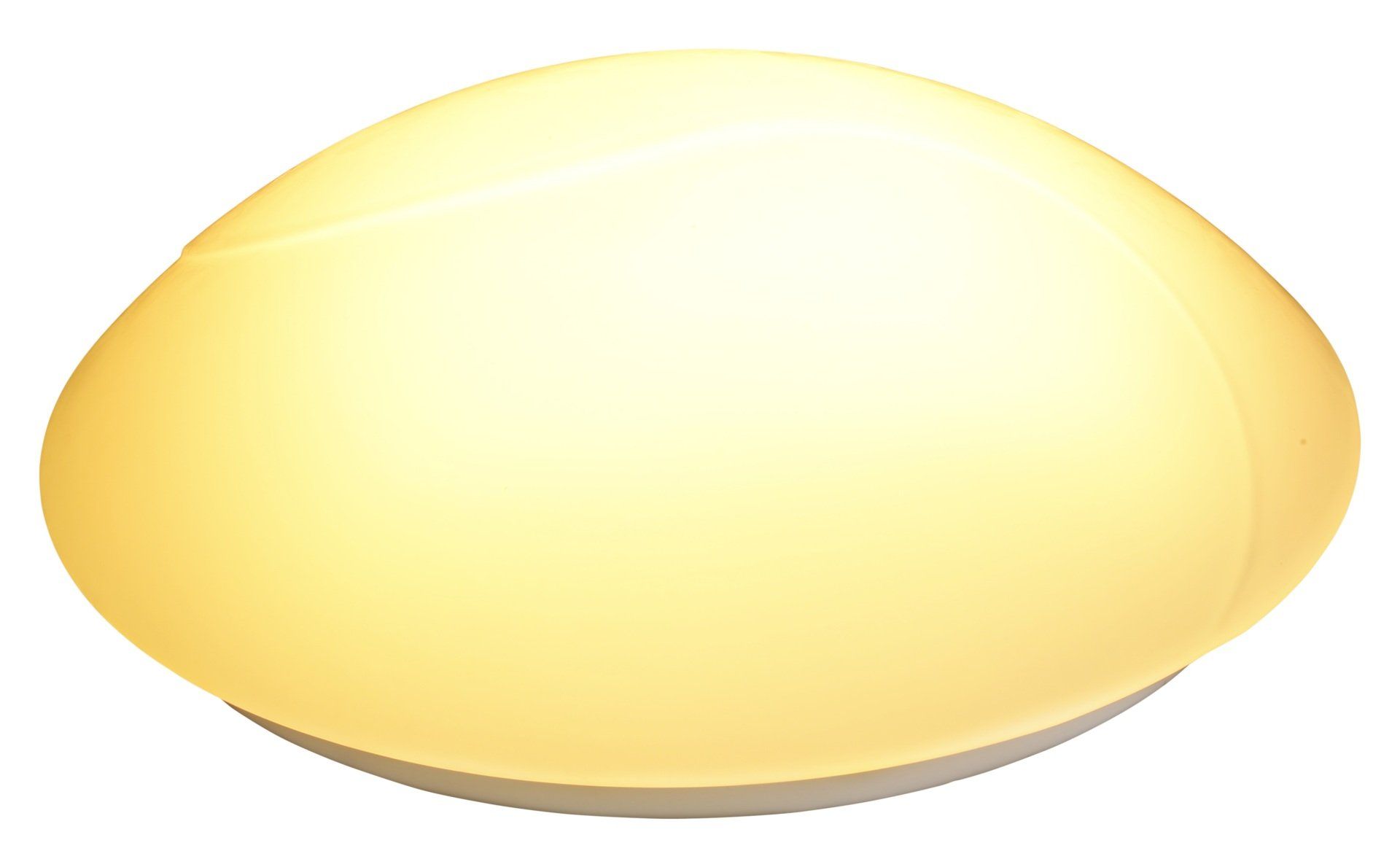

LED-coloured-light for infrared cabin and relaxation room art. no. 71012
incl. control module and power supply 100-240 V~50-60 Hz, power input max. 18 W for damped lighting. The light is suitable for ceiling or wall installation up to max. 60 °C. With covering dome made of frosted glass and mounting plate made of white coated steel. The single colours yellow, red, green, white, blue, orange, light-green, ice-blue, bright-blue, pink and lilac or a fluent colour run with smooth colour transitions with time intervals of 1, 2 or 4 minutes are programmed according to customers wish, light dim.: Ø 350 mm, height approx. 160 mm
total weight approx. 2.5 kg

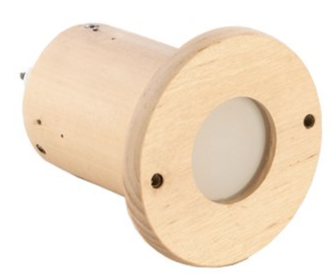

LED-installation-light white 5.5 W for sauna
art. no. 71051
suitable up to max. 110 °C, light made of natural wood with frosted glass insert Ø approx. 45 mm, light is embedded into the wall or ceiling except for the cover plate Ø approx. 100 mm height 9 mm, coverplate in stainless steel is available on request, light body Ø approx. 65 mm wooden casing depth approx. 95 mm, total depth incl. lamp and socket approx. 130 mm - so it stands out over the wood. Delivery incl. mounted lamp and ceramic so-cket with 5 m connection cable for 230 V/50 Hz, energy and cost saving LED lamp approx. 5.5 W power (approx. 5-fold brightness - therefore approx. equal to a traditional light bulb with 25 W), the light must only be operated with a LED lamp! Due to the glarefree design, a light shade can be avoided or designed small and shapely
weight approx. 520 g

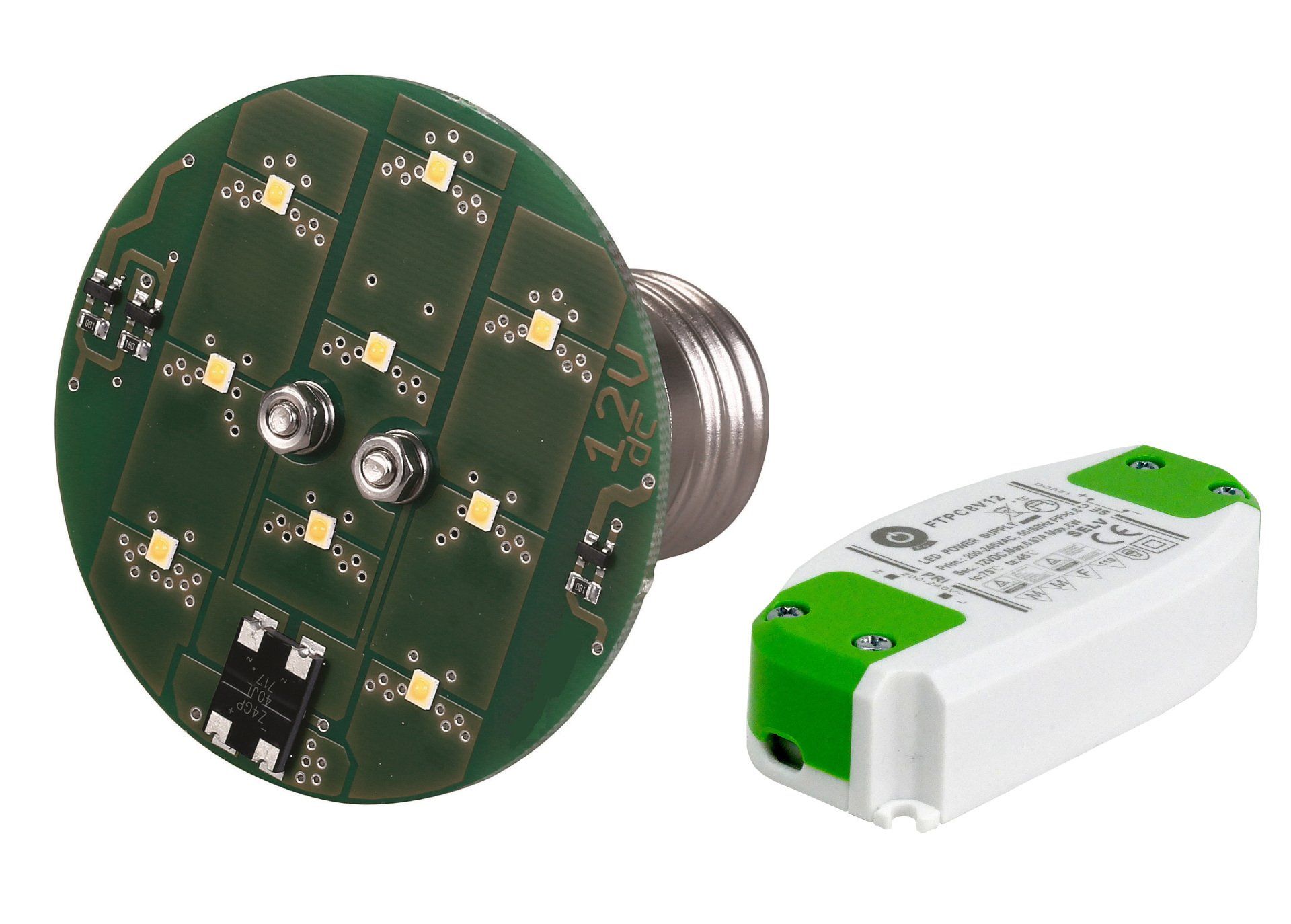

White light LED-insert approx. 3 W for sauna lights with socket E27
art. no. 85225
suitable for screwing into the sockets of the lights art. nos. 85220/85223, max. temperature 120 °C, power approx. 3 W (approx. 5-fold brightness - therefore approx. equal to a traditional light bulb with 15 W) energy and cost saving because of commercial use for several years (lifetime at 90 °C approx. 100.000 hours) and the time consuming regular inspection as well as the replacement of the bulb is no longer necessary. Incl. power supply (may differ from illustration) for mounting outside of the sauna (max. temperature power supply 40 °C, input 100-240 VAC~50-60 Hz - output 12 VDC) - at the power supply the silicone cables for connecting the LED-insert to the sauna lamp with 12 V and the 230 V-power supply of the sauna control are connected, also suitable for upgrade installation in existing sauna lights, dim.: LED-insert: ø approx. 60 mm, height approx. 60 mm,
weight approx. 180 g

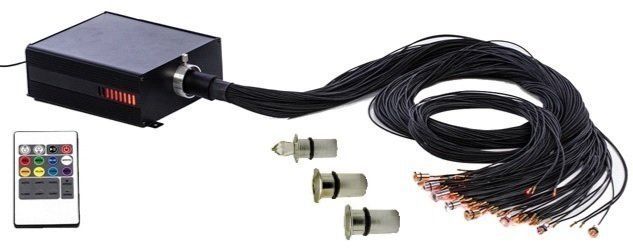

LED-coloured-light projector max. 18 W with radio-remote control
art. no. 70082
the dimmable single colours red, green, blue, white, yellow, orange, bright-blue and lilac or a flurent colour run with smooth colour transitions with adjustable speed are adjustable with the up to max. 60 °C usable radio-remote control, noiseless operation because without fan, incl. power supply 100-240 V~50-60 Hz, projector is usable for the connection of cable bundles with ø 30 mm, max. ambient temperature 45 °C
dim.: WxHxD approx. 200x85x250 mm,
total weight approx. 2.6 kg
Ready-made cable bundles made of glass- or plastic-fibres
art. no. 7010
single fibres with different lengths and diameters can be combined individually on customers request to receive a ready-made cable bundle. The cable bundles are delivered polished and with a pluggable connection piece ø 30 mm for the connection to the light projector. Therefore the installation is quick and easy.
Available glass fibre cables with sheath for sauna
heat resistant up to max. 120 °C,
cable-ø 1.0/1.5/1.8/2.0/2.6/3.3/4.3/5.0/6.3/8.5 mm
Available plastic fibre cables with or without sheath for steam bath and infrared cabin
heat resistant up to max. 85 °C, cable-ø from 0.25 - 8.0 mm available - exact information for available dimensions on request

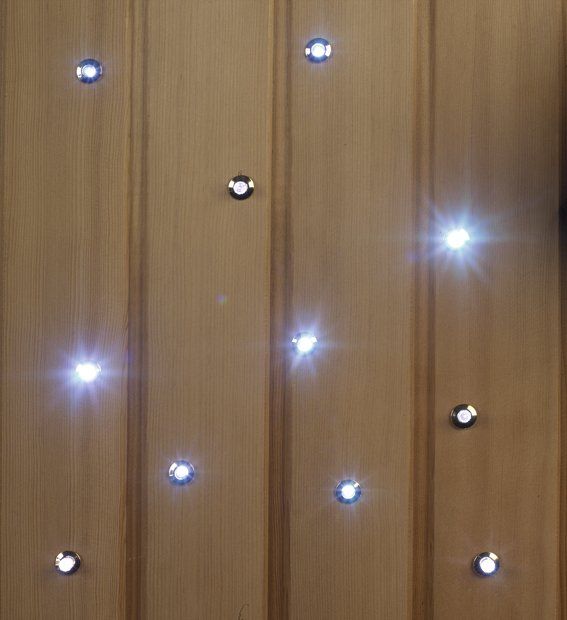

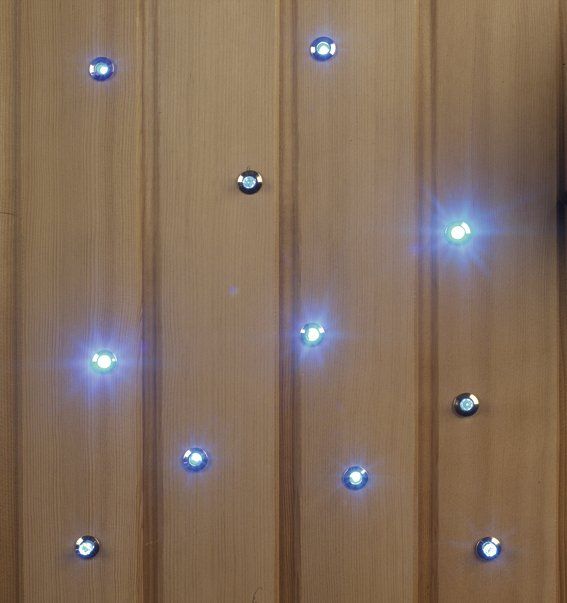

End sleeves for glass- or plastic fibre cables
art. no. 7029
available in design star effect, ball lens or light spot, cover ring-ø 15 mm, installation-ø 10 mm, available with chromed or gold plated case

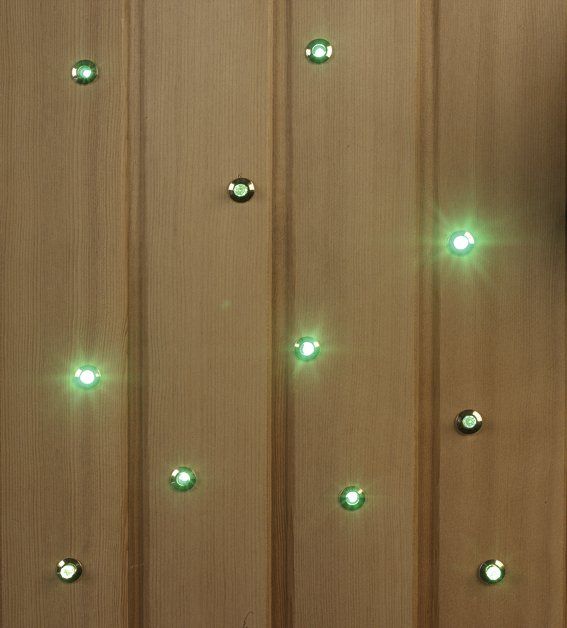

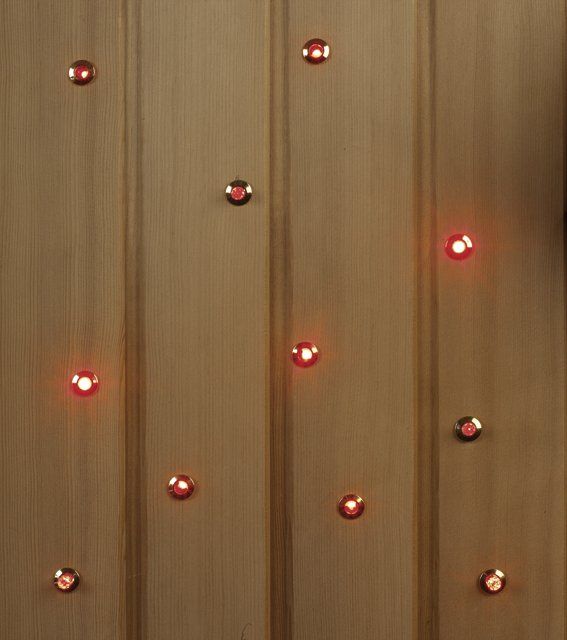

Complete set with 40 light spots suitable for sauna cabins up to approx. 4 m²
art. no. 70095
consisting of: LED-coloured-light projector incl. radio-remote control art. no. 70082 and ready-made cable bundle made of glass fibre with sheath ø 1.5 mm, 20 cables each with length 2.0 m and 20 cables each with length 1.4 m,
total weight approx. 4.5 kg
We are glad to offer you a starry sky system according to your individual wishes on request

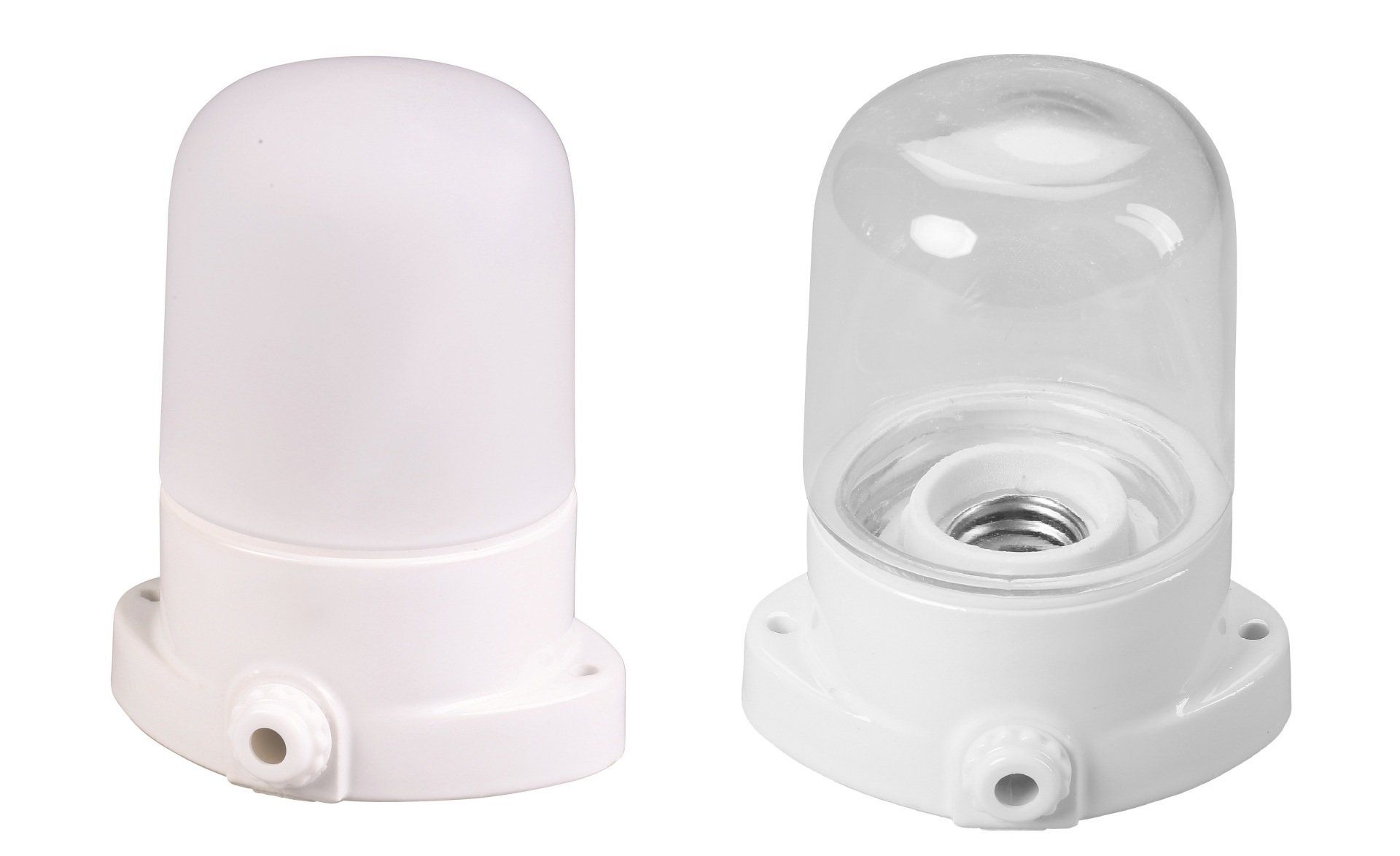

Lights for sauna
max. permissible surrounding temperature 125 °C, IP54 water-protected, ceramic screw base for light bulbs with socket E27 - at wall installation up to max. 60 W, at ceiling installation up to max. 40 W (for halogen bulbs up to max. 28 W) or LED insert art. no. 85225, voltage 230 V/50 Hz, suitable for light shades art. nos. 8524, 8527, 8528, 85292, 85295, 852960-63 and 85298, dim.: WxH approx. 110x140 mm,
weight approx. 650 g
With frosted glass dome
art. no. 85220
With clear glass dome
art. no. 85223
Light for sauna and steam bath
art. no. 82230
max. permissible surrounding temperature 125 °C, IP55 water-protected, with frosted glass dome, ceramic screw base for light bulbs with socket E14, only for ceiling installation up to max. 40 W (for halogen bulbs up to max. 28 W), voltage 230 V/50 Hz, suitable for light shades art. nos. 8527, 8528, 85292, 85295 and 85298
dim.: WxHxD approx. 75x170x90 mm
weight approx. 1 kg

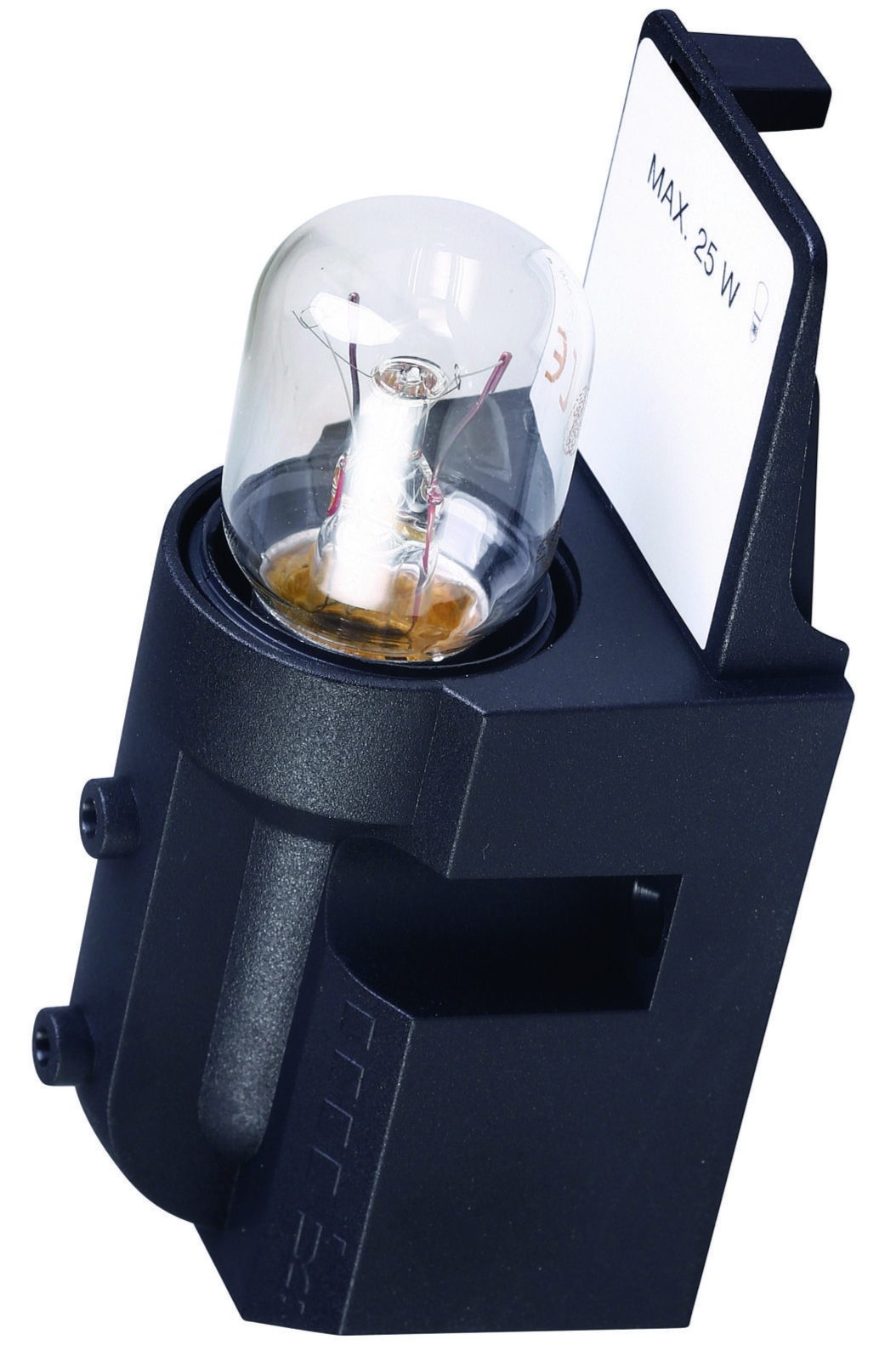

Light socket for private sauna cabins made of black plastic
art. no. 85211
for bulb lamps (not included in deli-very) with socket E14 up to max. 25 W (for halogen bulbs up to max. 18 W), voltage 230 V/50 Hz, with screwless double clamps, incl. strain relief, suitable for light shades art. nos. 8523, 8524, 8527, 8528, 85292, 85295, 852960-63 and 85298
dim.: WxHxD approx. 41x100x50 mm
weight approx. 35 g

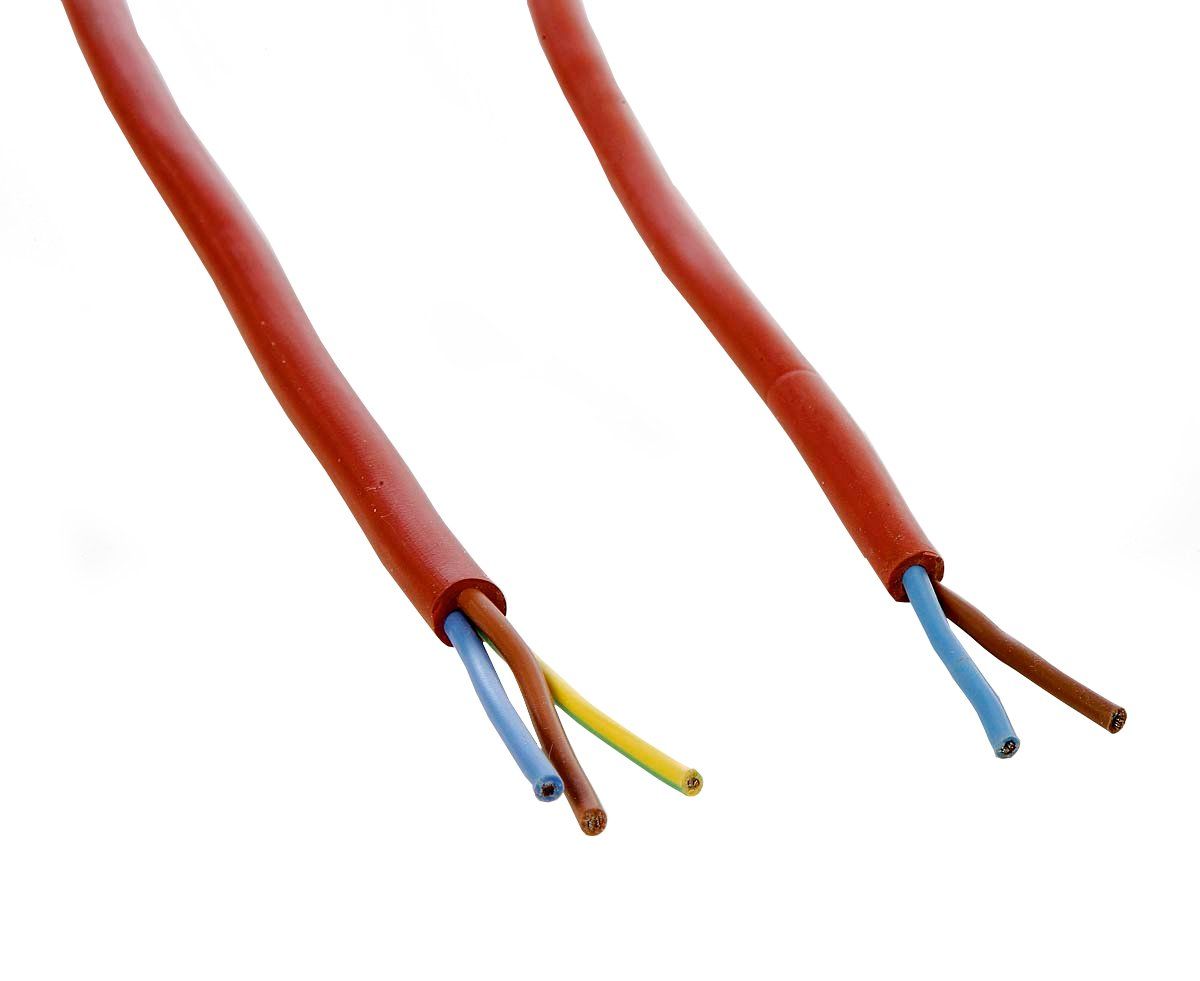

Silicone cables
heat resistant up to max. 180 °C
3x0.75 mm²
art. no. 85852
suitable for the connection of fans art. nos. 85904, 85905 and 85907
weight approx. 70 g/m
2x0.75 mm²
art. no. 85862
suitable for the connection of lights art. nos. 85220, 85223, 82230 and 85211 as well as fans art. nos. 85910 and 85913
weight approx. 60 g/m

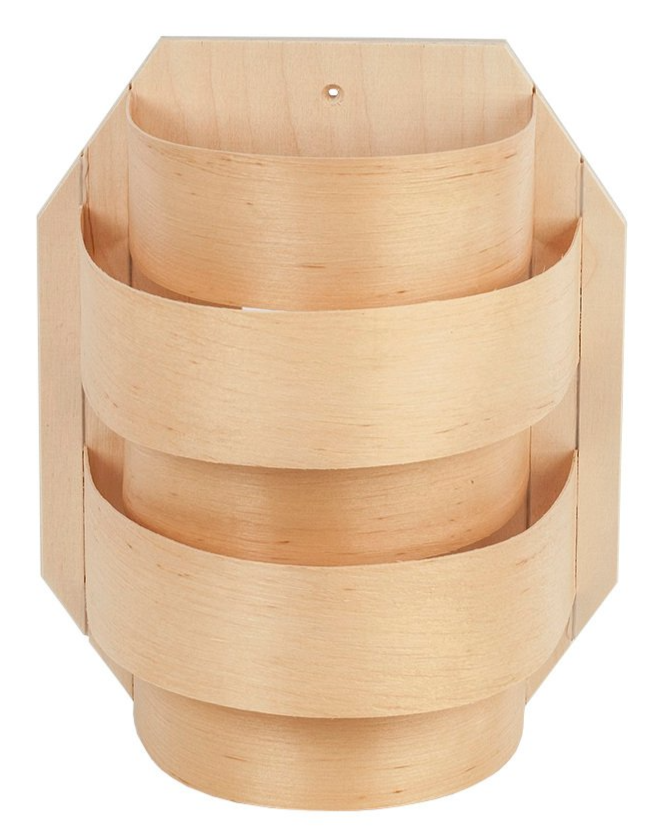

Light shade small
art. no. 8523
suitable for light socket art. no. 85211, wooden stripes fixed on plywood base plate, single packed in a carton
dim.: WxHxD approx. 185x230x140 mm
weight approx. 390 g
Light set small
art. no. 85250
light shade art. no. 8523 and light socket art. no. 85211,
weight approx. 440 g

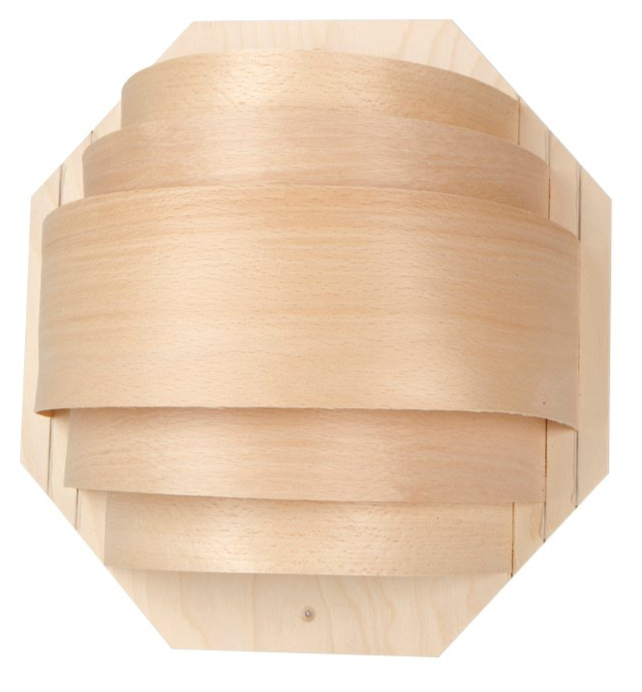

Light shade big
art. no. 8524
suitable for lights art. nos. 85220, 85223 or light socket art. no. 8521, wooden stripes fixed on plywood base plate, single packed in a carton
dim.: WxHxD approx. 280x300x185 mm
weight approx. 750 g

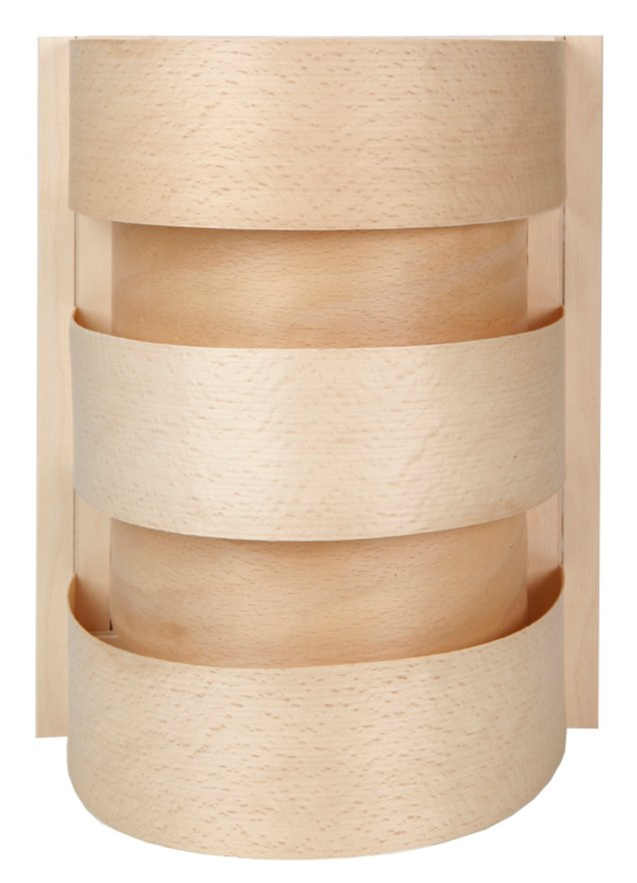

Light shade long
art. no. 8527
suitable for lights art. nos. 85220, 85223, 82230 or light socket art. no. 85211, wooden stripes fixed on plywood base plate, single packed in a carton
dim.: WxHxD approx. 230x300x155 mm
weight approx. 700 g

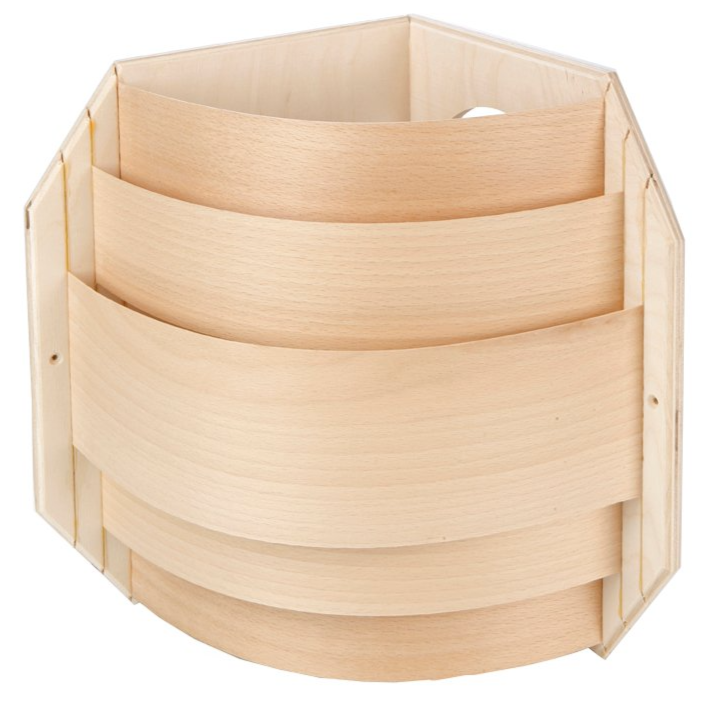

Light shade for corner installation
art. no. 8528
suitable for lights art. nos. 85220, 85223, 82230 or light socket art. no. 85211, wooden stripes fixed on plywood base plate, single packed in a carton
dim.: WxHxD approx. 230x310x230 mm
weight approx. 1.1 kg

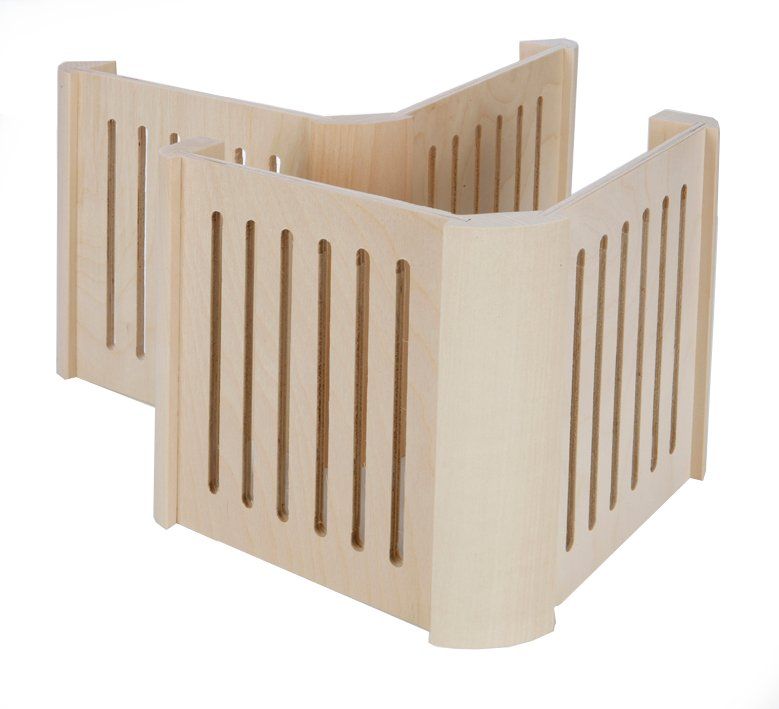

Light shades model “compact”
made of stable plywood, perfectly suitable for commercial use, suitable for lights art. nos. 85220, 85223, 82230 or light socket art. no. 85211
weight approx. 800 g
For wall installation
art. no. 85292
for hooking in with 2 invisible metal hangers
dim.: WxHxD approx. 345x240x180 mm
For corner installation
art. no. 85295
for concealed screwing on with 2 pre-drilled holes, dim.: WxHxD approx. 310x240x170 mm
Light shades for sauna with printed, heat resistant plastic foil
base plate made of plywood for mounting at the wall - through suspension cutouts the light shade can be screwed on firmly or only hooked in for a quick exchange of the light bulb without tools, suitable for lights art. nos. 85220, 85223 or light socket art. no. 85211, dim.: WxHxD approx. 160x195x165 mm
weight approx. 290 g
| Motif | art. no. |
|---|---|
| sunset | 852960 |
| orchid | 852961 |
| oriental | 852962 |

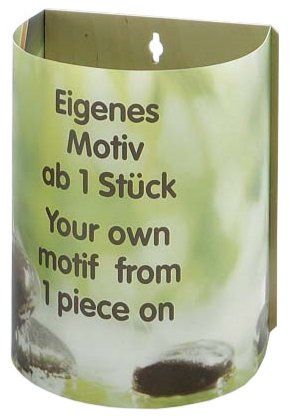

Your own motif - deliverable from 1 piece on
art. no. 852963
for this we need only your printable picture with at least 300 dpi - suitable for the printable surface of WxH max. 400x195 mm

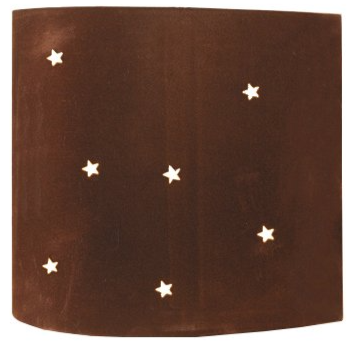

Light shade aluminium flocked
art. no. 85298
sight surface dark-brown flocked with stamped out stars, is delivered as flat sheet which can be locally fixed above the lights art. nos. 85220, 85223, 82230 or light socket art. no. 85211 in the desired curve for wall or corner installation, through suspension cutouts the light shade can be screwed on firmly or only hooked in for a quick exchange of the light bulb without tools
dim.: WxHxD approx. 400x200x0.7 mm
weight approx. 120 g
