eliga door hinges for glass doors

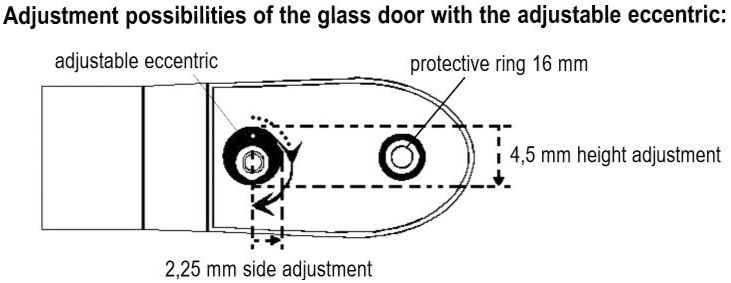

• height and side adjustment of the glass door up to 4.5 mm depending on the fitting position of the adjustable eccentric is possible (see drawing)
• silent, maintenance-free plastic slide bearing
• aperture angle 180°
• door hinge made of corrosion-free zinc die-casting
• turning pin and screws made of stainless steel
• DIN left or right usable

Design: Tongue form*

for private and commercial facilities

surface:

art. no. 85147   high-polished chrome

art. no. 85148   matt-chrome

art. no. 851490 stainless steel look

fastening in rabbet: 2 drill-in threaded pins M8x40

remarks: for glass pane inside in door frame

glass bore holes: 2 pieces (dimension sheet on request)

load-bearing capacity: 25 kg/piece

dimensions WxH approx .: 132x79 mm

weight approx.: 530 g

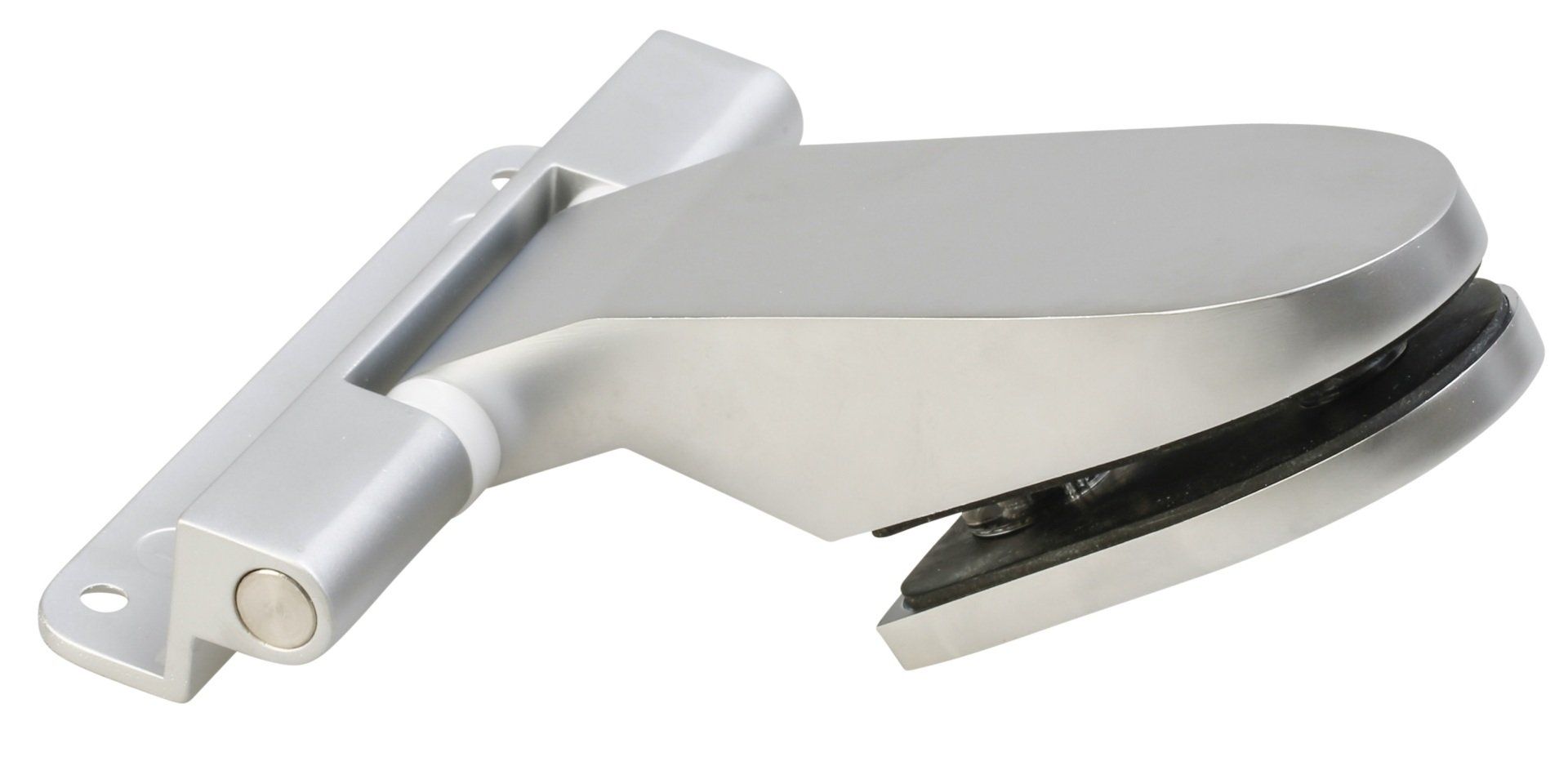

Design: Tongue form*

for private and commercial facilities

surface:

art. no. 85150   matt-chrome

fastening in rabbet: screw-on band in the door rabbat

remarks: for glass pane inside in door frame

glass bore holes: 2 pieces (dimension sheet on request)

load-bearing capacity: 25 kg/piece

dimensions WxH approx .: 128x124 mm

weight approx.: 710 g

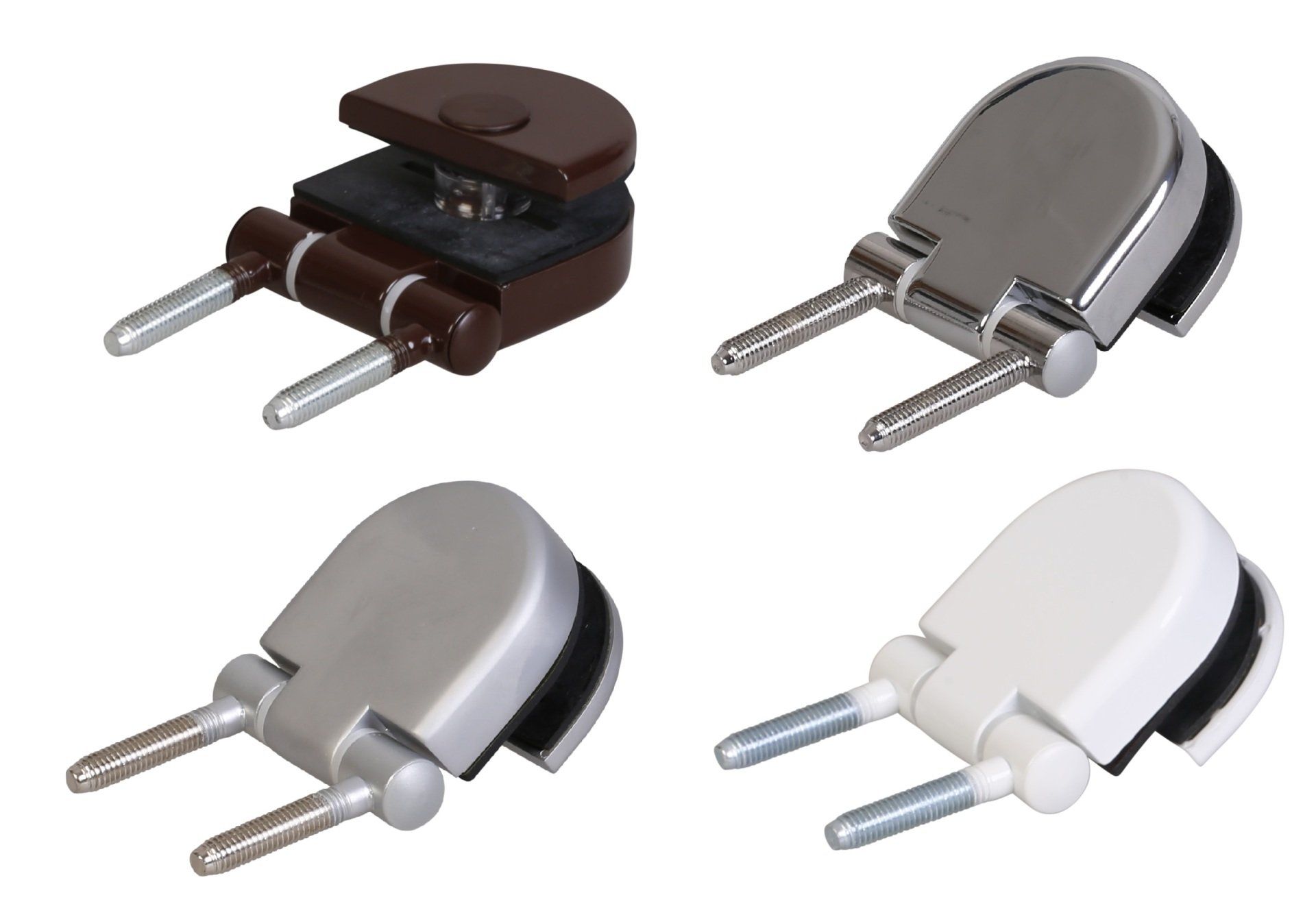

Design: Modern Art*

for private facilities

surface:

art. no. 85152   brown

art. no. 85157   high-polished chrome

art. no. 85158   matt-chrome

art. no. 85162   white

fastening in rabbet: 2 drill-in threaded pins M8x40

remarks: for glass pane inside in door frame

glass bore hole: 1 pieces (dimension sheet on request)

load-bearing capacity: 20 kg/piece glass door width max. 70 cm

dimensions WxH approx .: 71x60 mm

weight approx.: 285 g

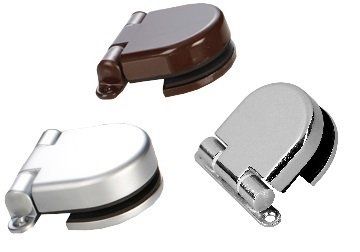

Design: Modern Art*

for private facilities

surface:

art. no. 85165   brown

art. no. 85167   high-polished chrome

art. no. 85168   matt-chrome

fastening in rabbet: screw-on band at the door rabbat

remarks: for glass pane inside in door frame

glass bore holes: 1 pieces (dimension sheet on request)

load-bearing capacity: 20 kg/piece glass door width max. 70 cm

dimensions WxH approx .: 71x84 mm

weight approx.: 285 g

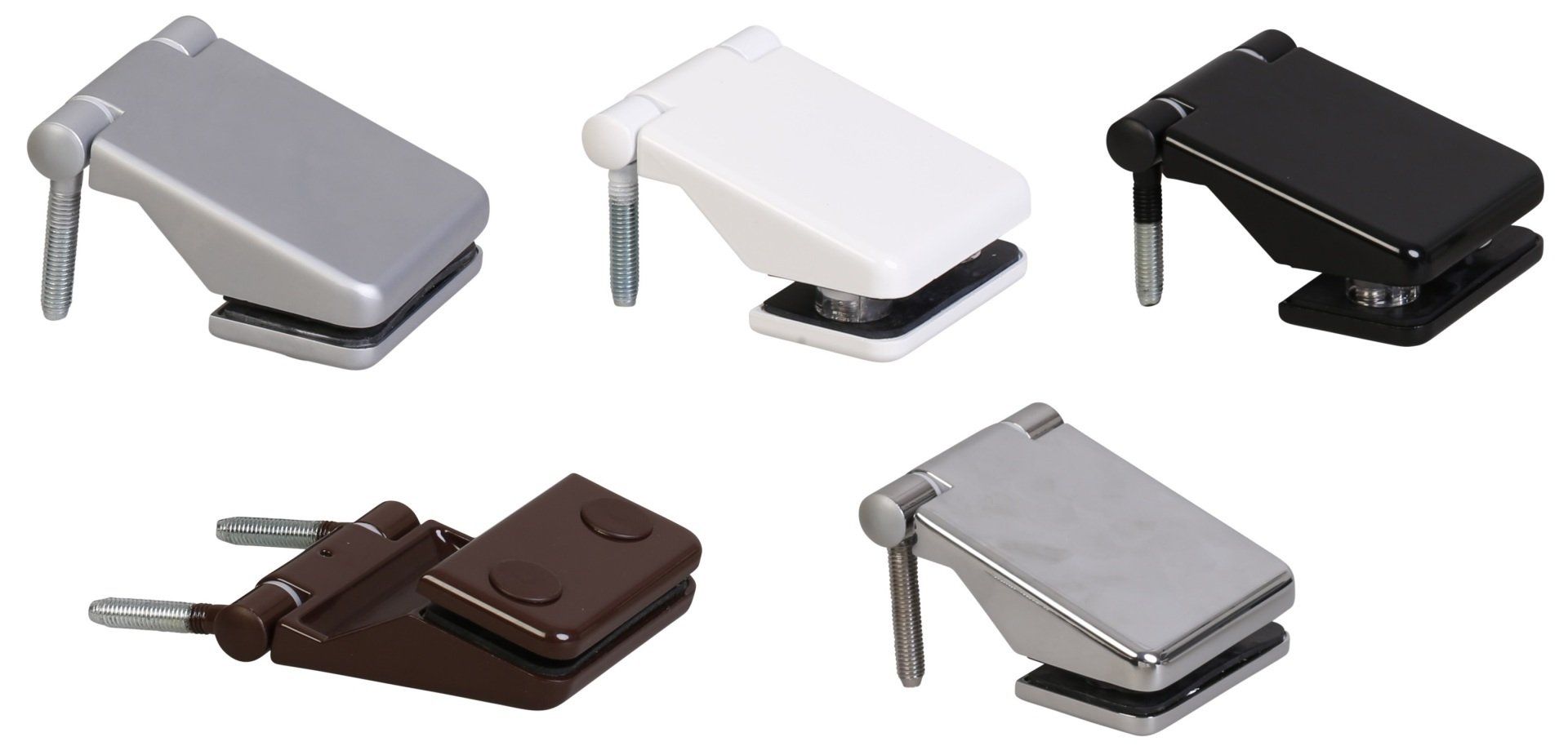

Design: Angled form*

for private and commercial facilities

surface:

art. no. 85179   matt-chrome

art. no. 85180   brown

art. no. 85181   white

art. no. 85183   high-polished chrome

art. no. 85184   black

fastening in rabbet: 2 drill-in threaded pins M8x40

remarks: for glass pane inside in door frame

glass bore holes: 2 pieces (dimension sheet on request)

load-bearing capacity: 25 kg/piece

dimensions WxH approx .: 98x77 mm

weight approx.: 530 g

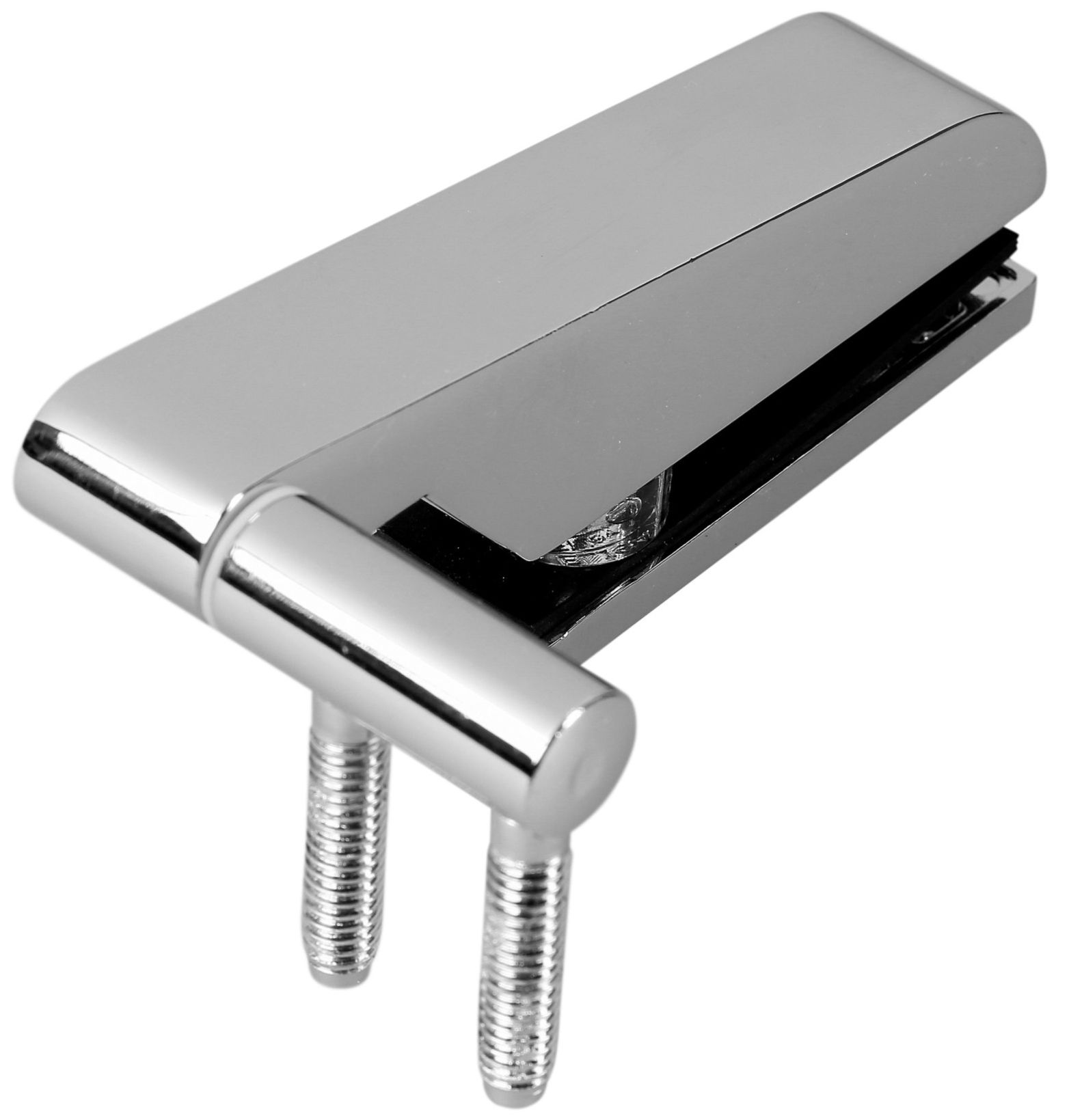

Design: Long form*

for private facilities

surface:

art. no. 85189   high-polished chrome

fastening in rabbet: drive-in threaded pins M8x35 mm

remarks: for glass pane inside in door frame

glass bore holes: 2 pieces (dimension sheet on request)

load-bearing capacity: 20 kg/piece glass door width max. 85 cm

dimensions WxH approx .: 128x66 mm

weight approx.: 415 g

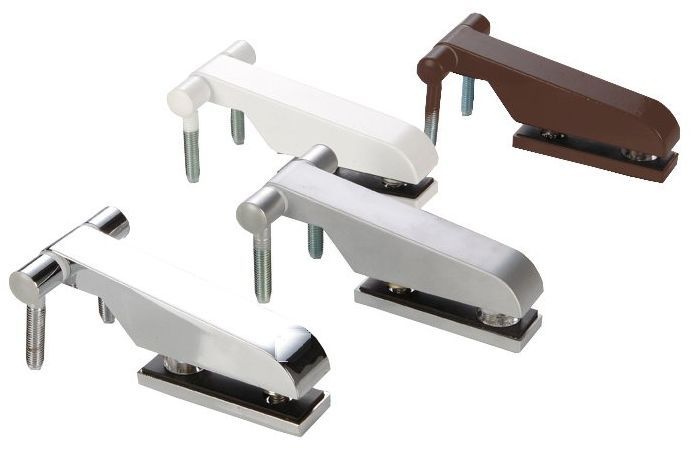

Design: Long form*

for private facilities

surface:

art. no. 85191   brown

art. no. 85192   white

art. no. 85193   high-polished chrome

art. no. 85194   matt-chrome

fastening in rabbet: 2 drill-in threaded pins M8x40 mm

remarks: for glass pane inside in door frame

glass bore holes: 2 pieces (dimension sheet on request)

load-bearing capacity: 20 kg/piece glass door width max. 85 cm

dimensions WxH approx .: 128x60 mm

weight approx.: 415 g

Design: Long form*

for private facilities

surface:

art. no. 85196   brown

art. no. 85198   high-polished chrome

art. no. 85199   matt-chrome

fastening in rabbet: with screw-on band at the door rabbet

remarks: for glass pane inside in door frame

glass bore holes: 2 pieces (dimension sheet on request)

load-bearing capacity: 20 kg/piece glass door width max. 85 cm

dimensions WxH approx .: 128x84 mm

weight approx.: 415 g

The load-bearing capacity in reference to the chart doubles when using two door hinges. By using a third hinge the load-bearing capacity increases by a further 25 %. These values apply for doors with a normal width of up to max. 90 cm and a height of max. 200 cm, unless otherwise noted. On request we can offer you surface coatings in every colour according to the RAL-colour chart. All our door hinges are delivered for glass doors 8 mm thick. Please inform us in advance if you need if for other glass door thicknesses (6 or 10 mm), then we will deliver adapted accessory kits according to your order. For usage in saline environment air, you need special door hinges - please contact us in advance for this!

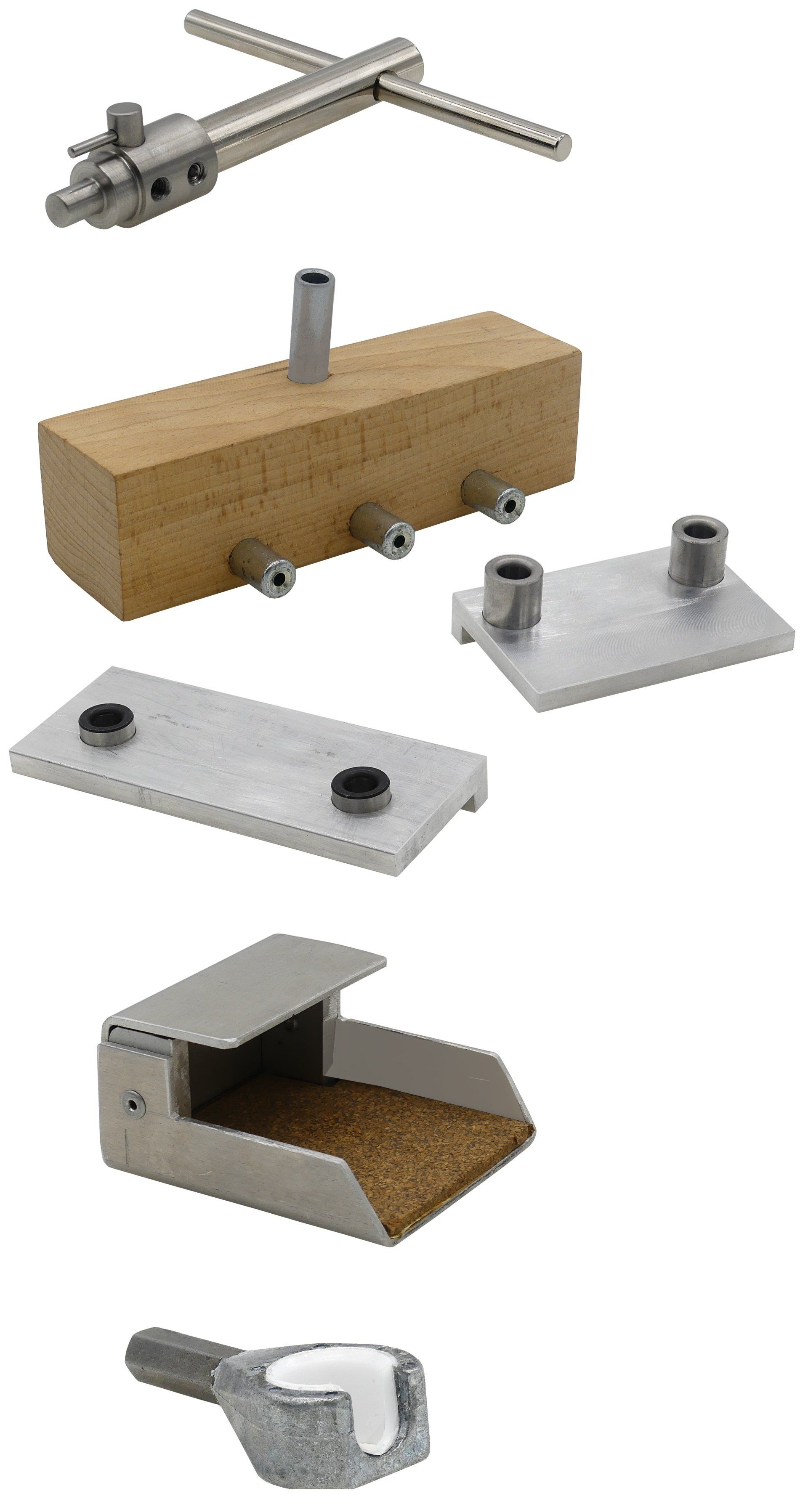

Assistance tools

these tools will simplify your precise installation of our door hinges:

Adjustment tool for adjustable eccentric

art. no. 35079

for an easy and exact adjustment of the adjustable eccentric, suitable for all eliga glass door hinges with adjustable eccentric

Drill templates

suitable for art. nos. 85147-851490

art. no. 36009

suitable for art. no. 85176

art. no. 36010

suitable for art. nos. 85171-85172

art. no. 36011

suitable for art. nos. 85152-85162

art. no. 36012

suitable for art. nos. 85179-85184

art. no. 36013

suitable for art. nos. 85189 and 852090/91

art. no. 36014

suitable for art. nos. 85191-85194

art. no. 36015

Fixing help

art. no. 36016

suitable for art. nos. 85152-85168

Screw-in/drive-in tool

art. no. 36017

suitable for all door hinges with drill-in and drive-in threaded pins

Glass-to-glas-door hinges

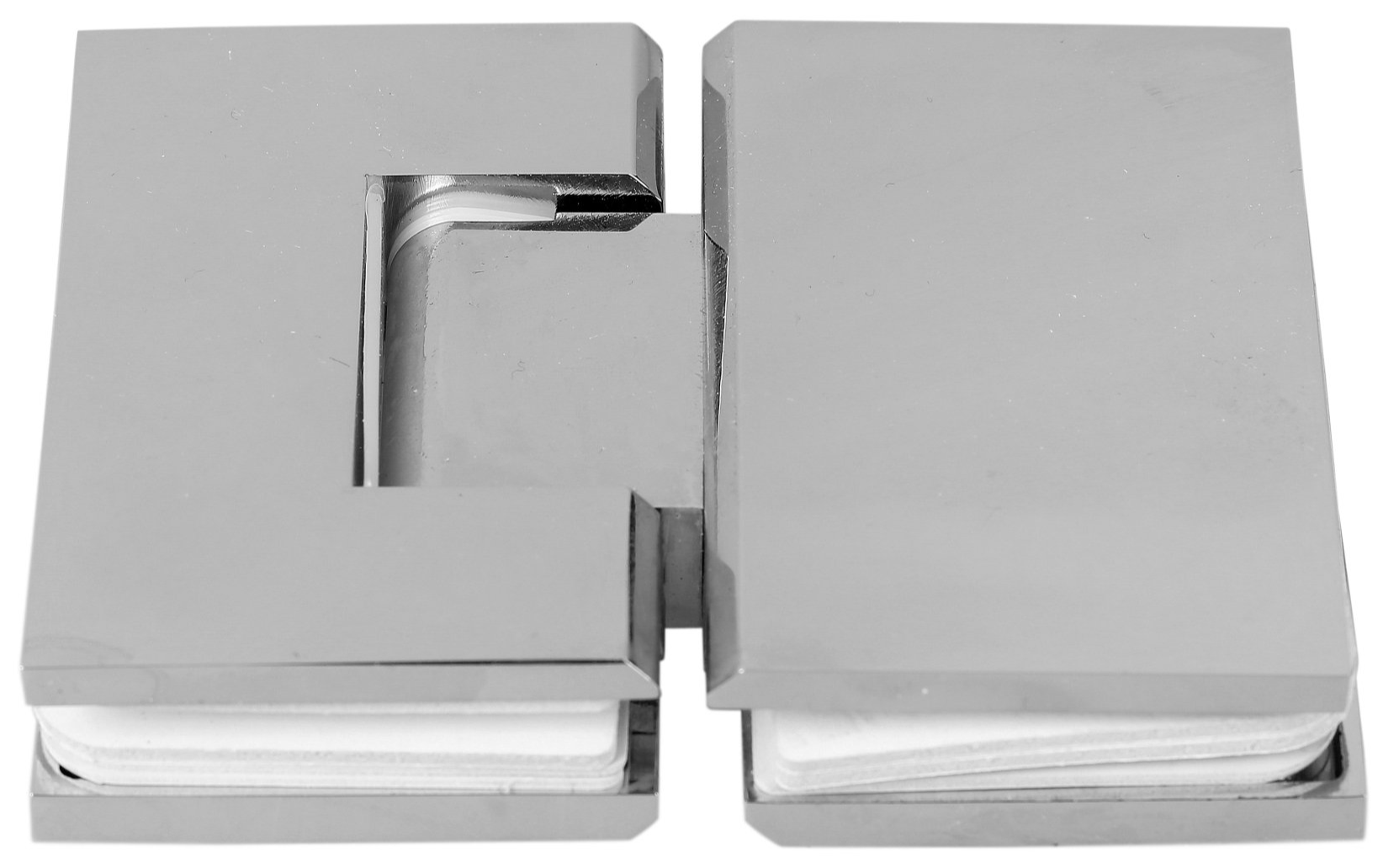

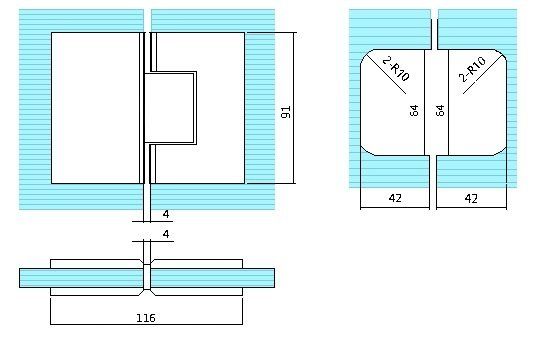

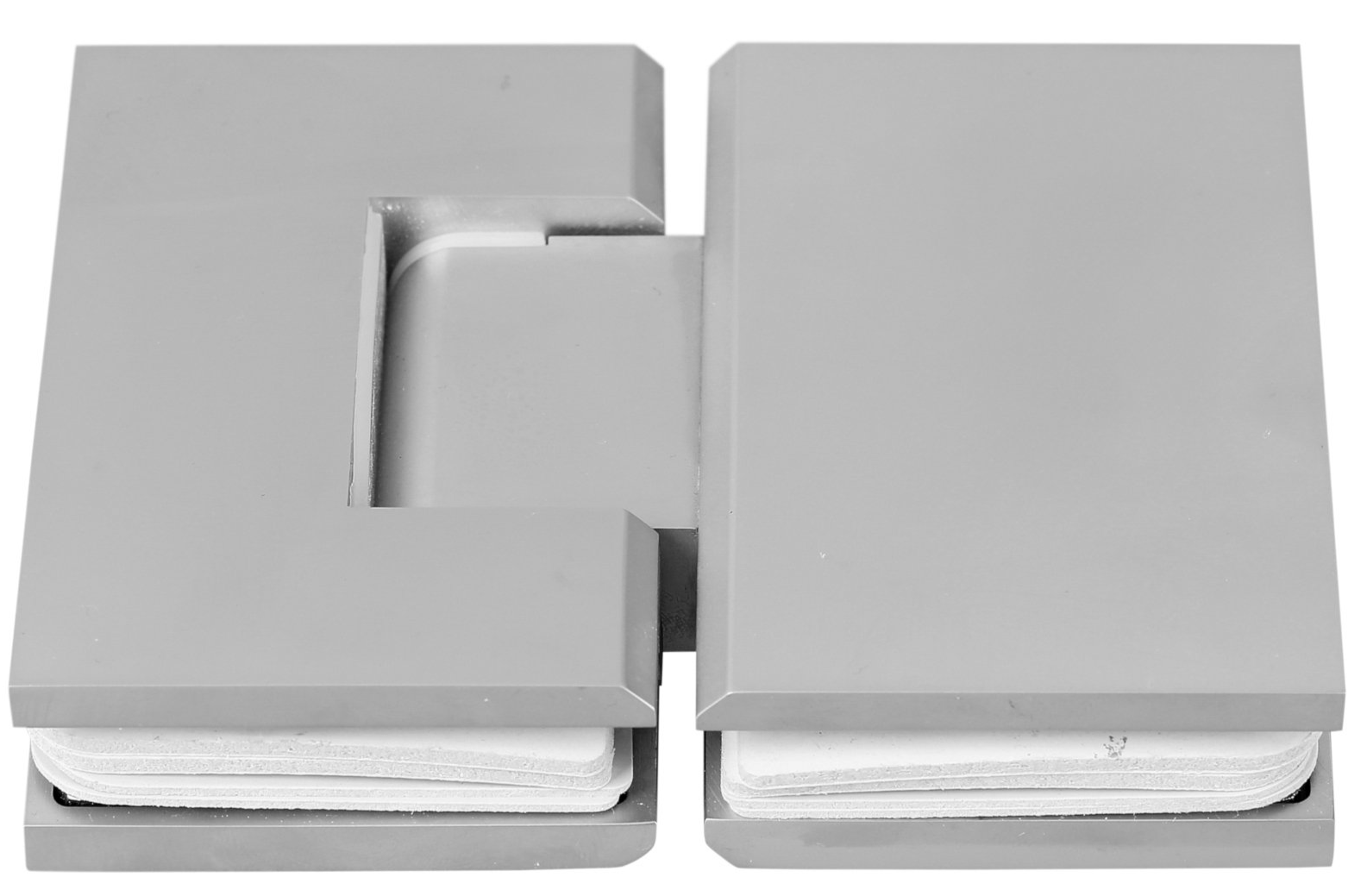

Swing door hinges 180° for glass-to-glass-doors with mouse ear drillings

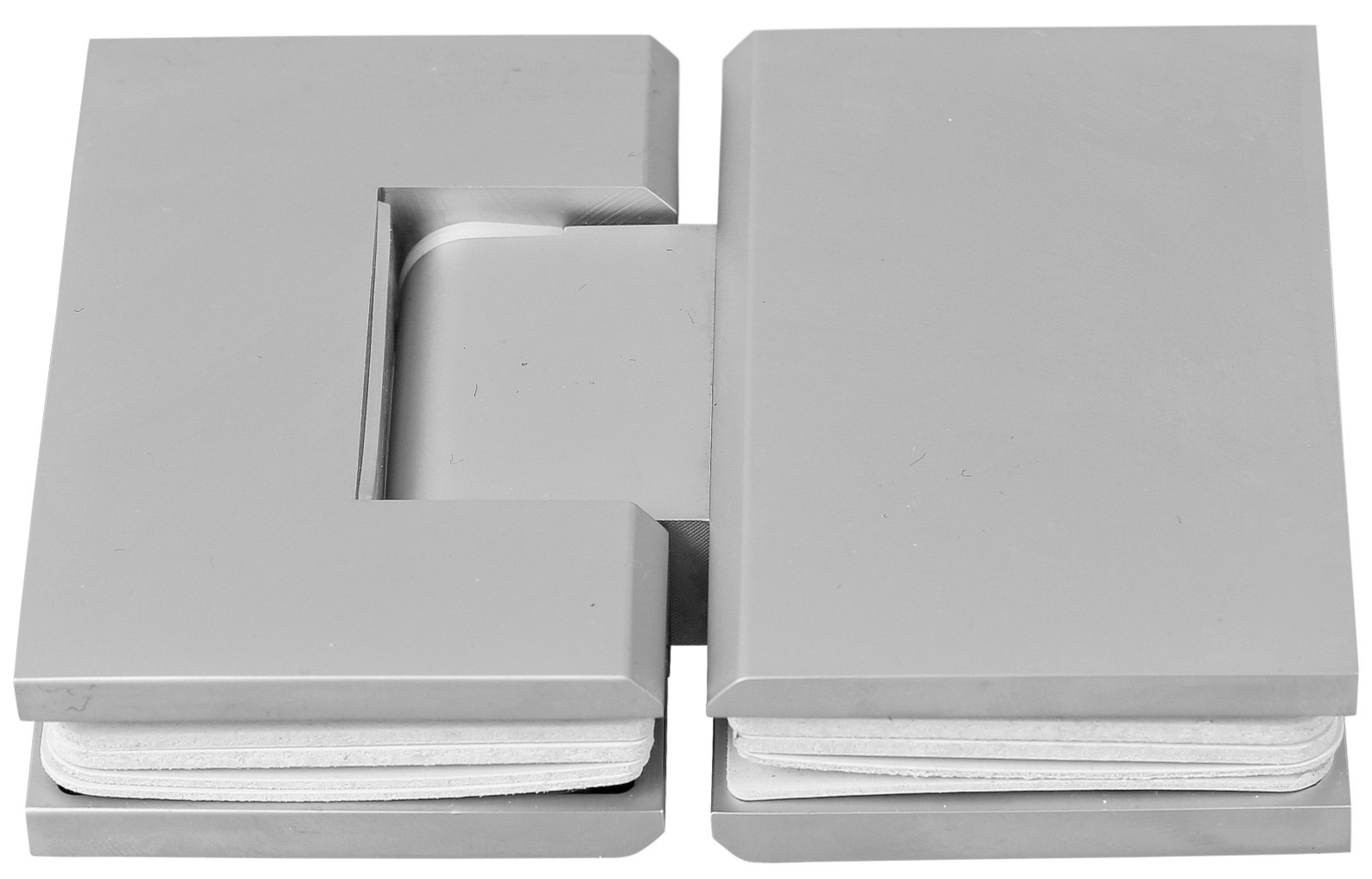

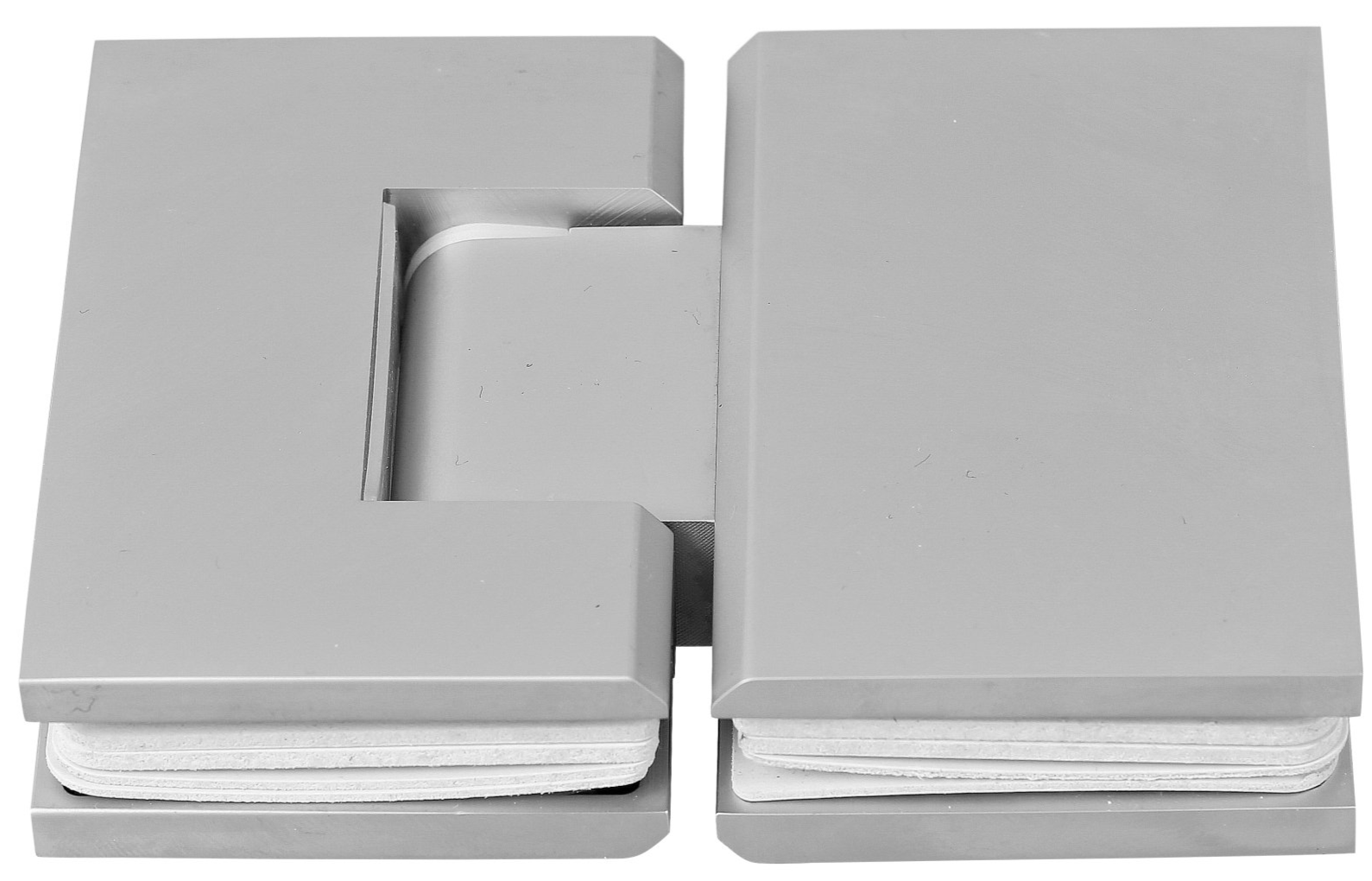

art. no. 852010-13

self-closing at close range of 180°, with adjustable zero position, max. opening range of the door 90°, with the special heat-resistant inserts of mineral fibers the adjustment to glass door thicknesses of 6-10 mm is possible, door hinge made of brass with turning pin and screws made of stainless steel, optically high-qualitiy design because only the cover plates are laterally fixed with small grub screws otherwise no other screws are visible, load-bearing capacity 20 kg per piece

weight approx. 1.2 kg
